Name: Line Clamp 38
SKU: FC-P102329-01
Availability: InStock

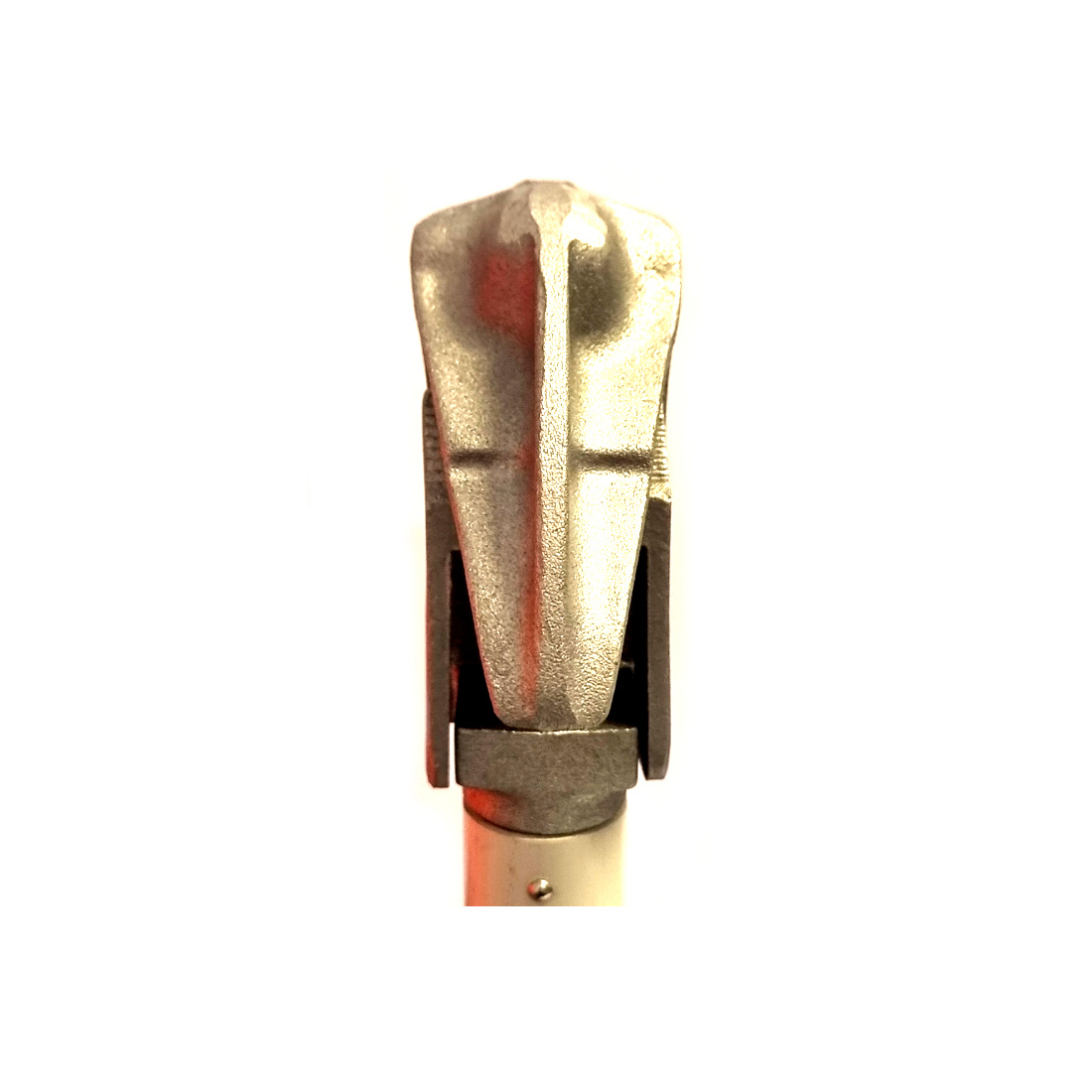

Line Clamp 38

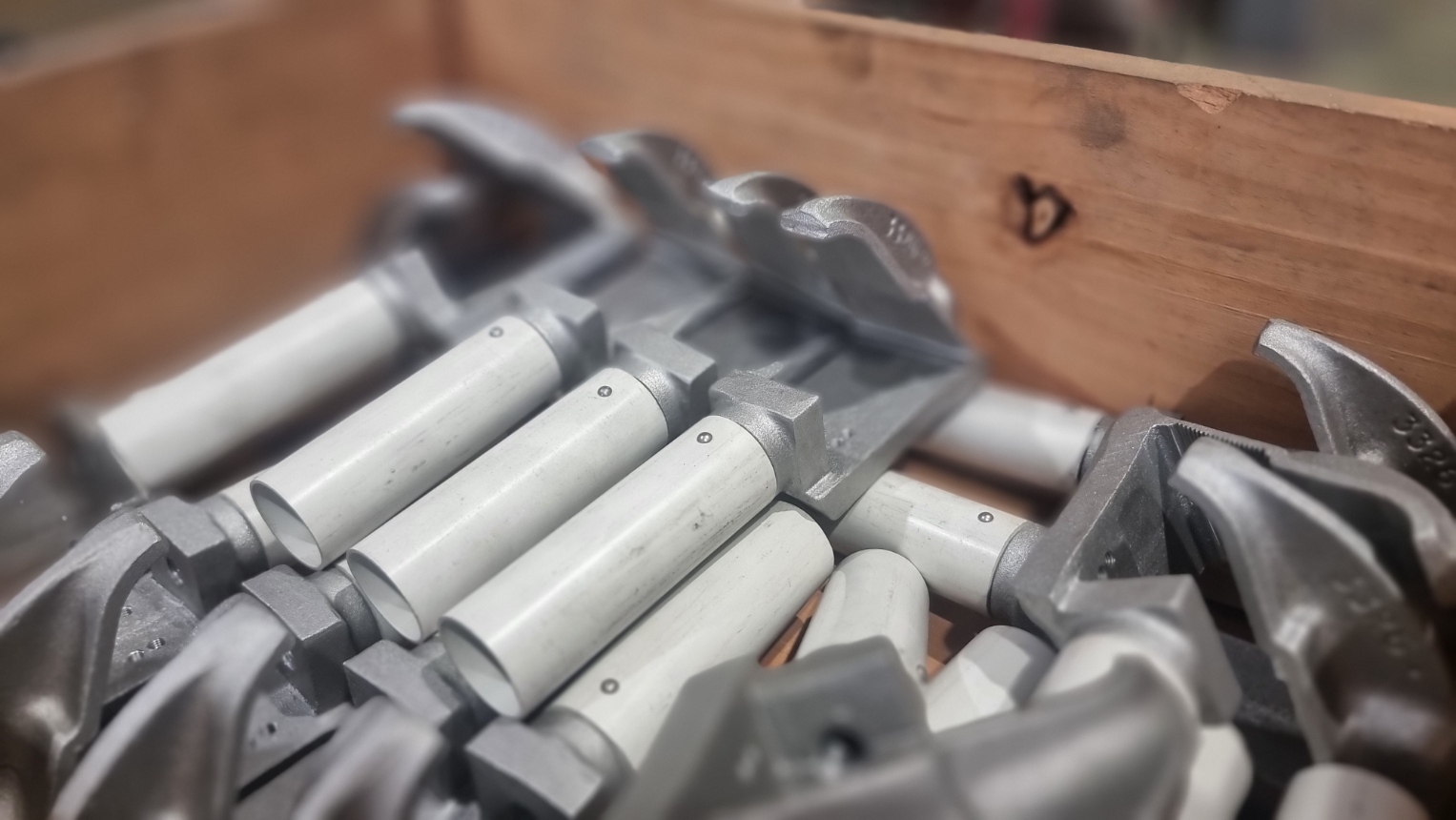

Line Clamp 38 under construction awaiting operating handles to be attached.

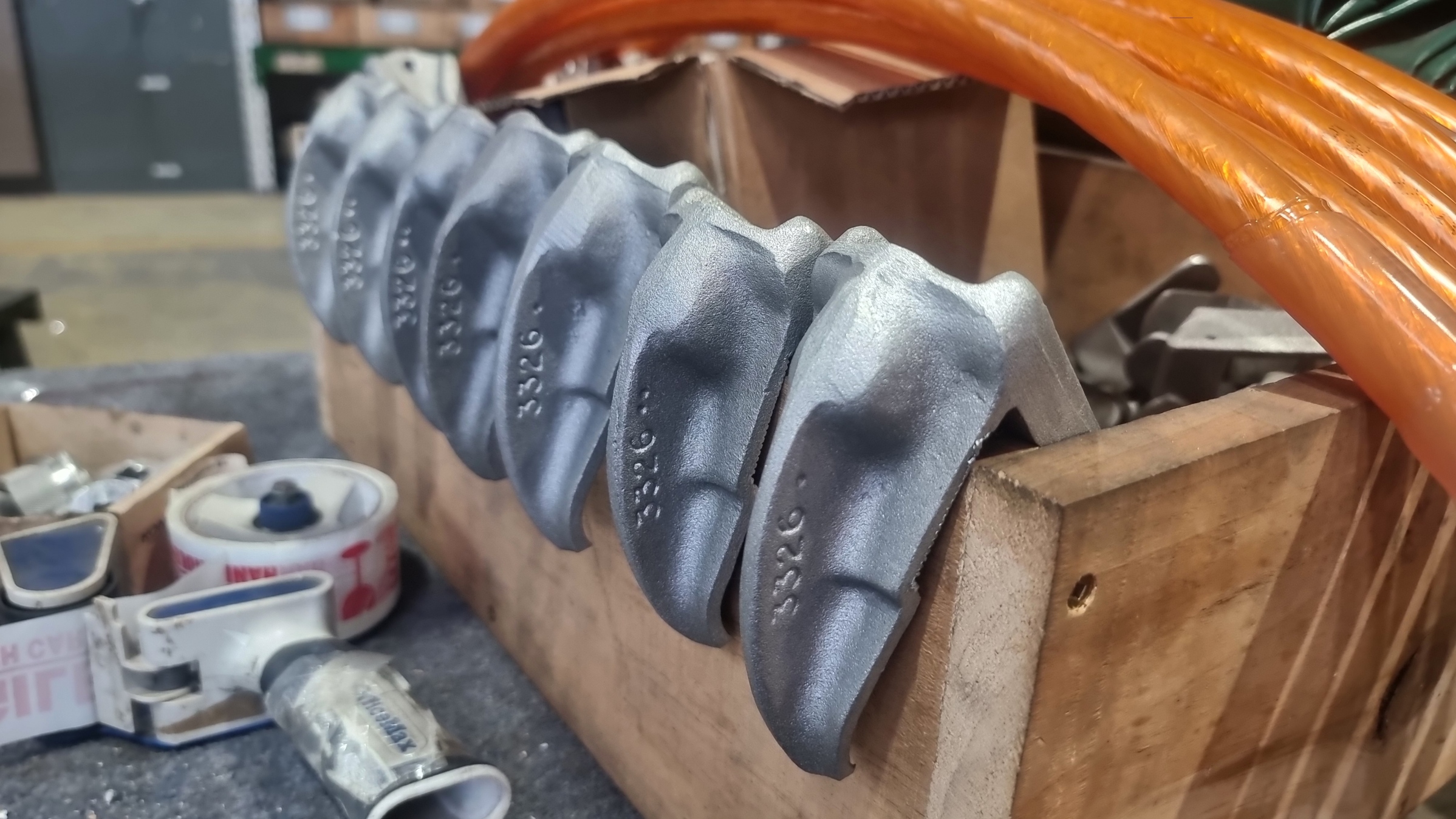

Line Clamp 38 components with 147mm2 cable on the production line

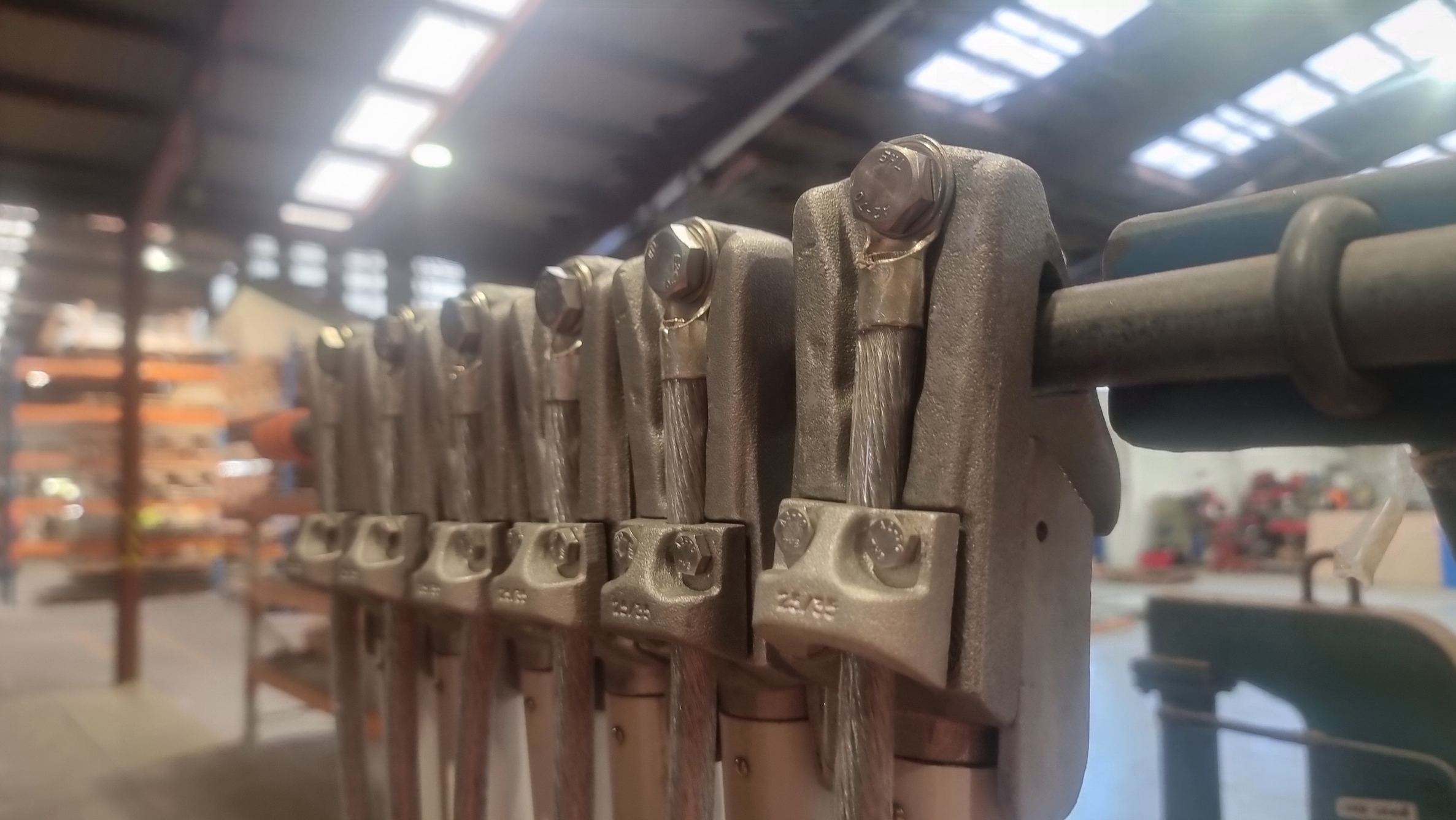

Line Clamp 38s on the production line. Showing the protective saddle that reduces stress on the cable-clamp connection.

Our Line Clamp 38 has given our customers decades of reliable operation. Our design comes with options for different attachments and a dog clutch mechanism for enhanced control.

Spindle Type

Clear

Special Requirements & Additional Notes

Product total

Options total

Grand total

SKU: FC-P102329-01 Category: Individual Parts

Description
Additional information

Description

Cast aluminium
Nominal jaw opening 3mm to 38 mm
Jaw surfaced machined with teeth to break dirt and oxidation barriers on overhead line conductors
Dog clutch for enhanced operator control of line clamp.
Support saddle minimises fatigue on cable and termination lug.
ACME spindle thread speeds up opening and closing action.
Jaw step provides secure attachment of cable.
Parking bar option. Just let us know that this is what you want in the special requirements box.

Drawing No: 332611

Download Line Clamp 38 Specification Sheet

Additional information

Spindle Type	Fixed Handle with Button Joint, Fixed Handle with Flexi-Joint, Bayonet, Bayonet with Dog Clutch, Shotgun, Pfisterer Bayonet, T-Bar, Screwdriver
