Switchgear Probe 3 Phase Earthing Set
Reyrolle swtchgear probe.
Out of stock
Polycarbonate Junction Block
Transparent to enable easy visual inspection
5-Way (70mm2 cable) and 6-Way (35mm2/50mm2) options
Tested in accordance with IEC 61230
Insufficient stock

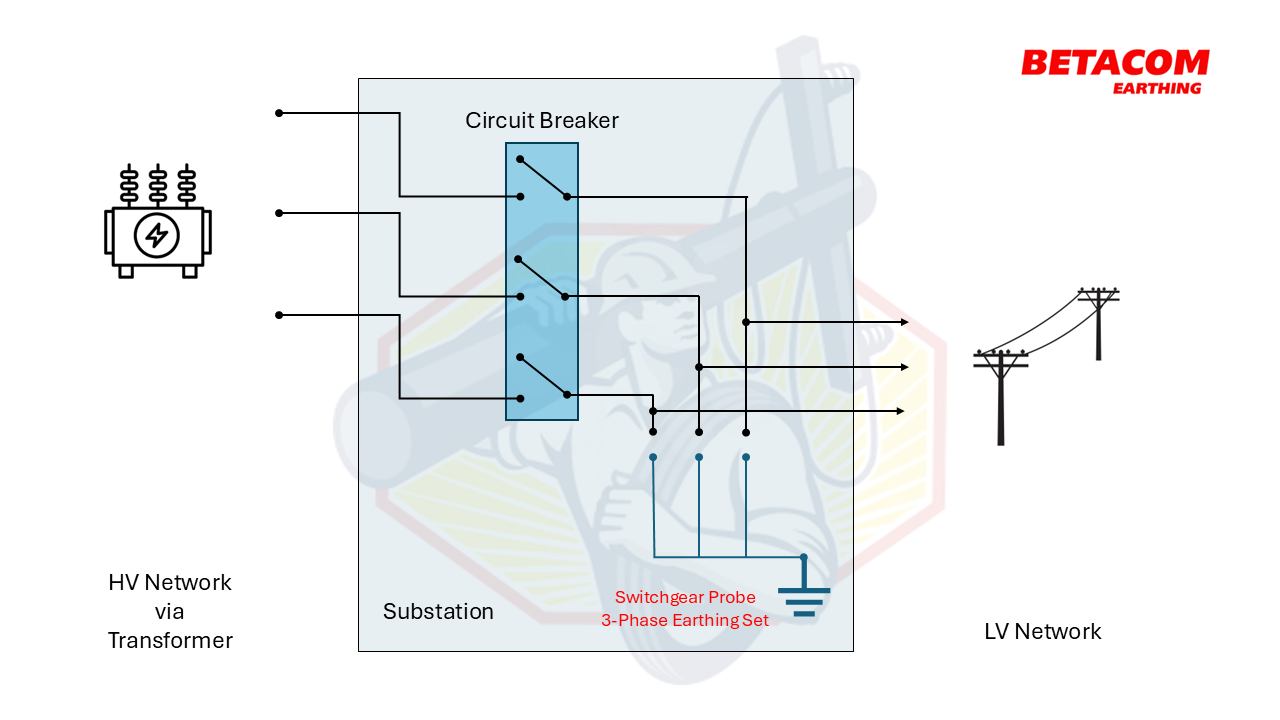

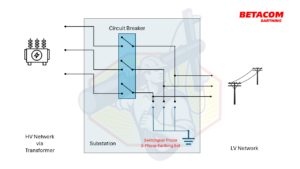

This portable earthingElectrical earthing, also known as grounding, is a safety m... More device set allows you to earth cables• In a PED, these cables connect the ground clamp to the r... More attached to your indoor 11kV Reyrolle switch gear.
The Reyrolle switchgear prove set was originally developed for Orion and electrically type tested in Australia.
3 x Switchgear Probe with Reyrolle Adapter Assembly
3 x 50mm2 line cable
1 50/70mm2 5-Way Junction BlockA junction block is a device used to connect two or more cab... More
1 x 50mm2 earth cable
1 x Ground Clamp with screwdriver handleAn operating pole designed to be permanently attached to a l... More spindle
Optional equipment bag
Drawing Number 330569
25mm2 CU, 6kA for 1s, 35mm2 CU, 10.0 kA for 1s, 35mm2 CU, 11.5 kA for 1s, 50mm2 CU, 16kA for 1s, 147mm2 AL, 25kA for 1s
Yes, No
0.5, 1, 1.5, 2, 3, 5, 7, 10, 15, 20, 30, 40, 50, 100, 300, 500, 750, 1000
50mm 5-way
0.5, 1, 2, 3, 5, 7, 10, 15, 20, 30, 40, 50, 100, 300, 500, 750, 1000
Screwdriver
