Sofamel Power Light Voltage Detector

Description

• Flashlight in the upper part with high brightness and low power consumption LEDs, for use in dark places. The use of the flashlight is independent of the detection system.

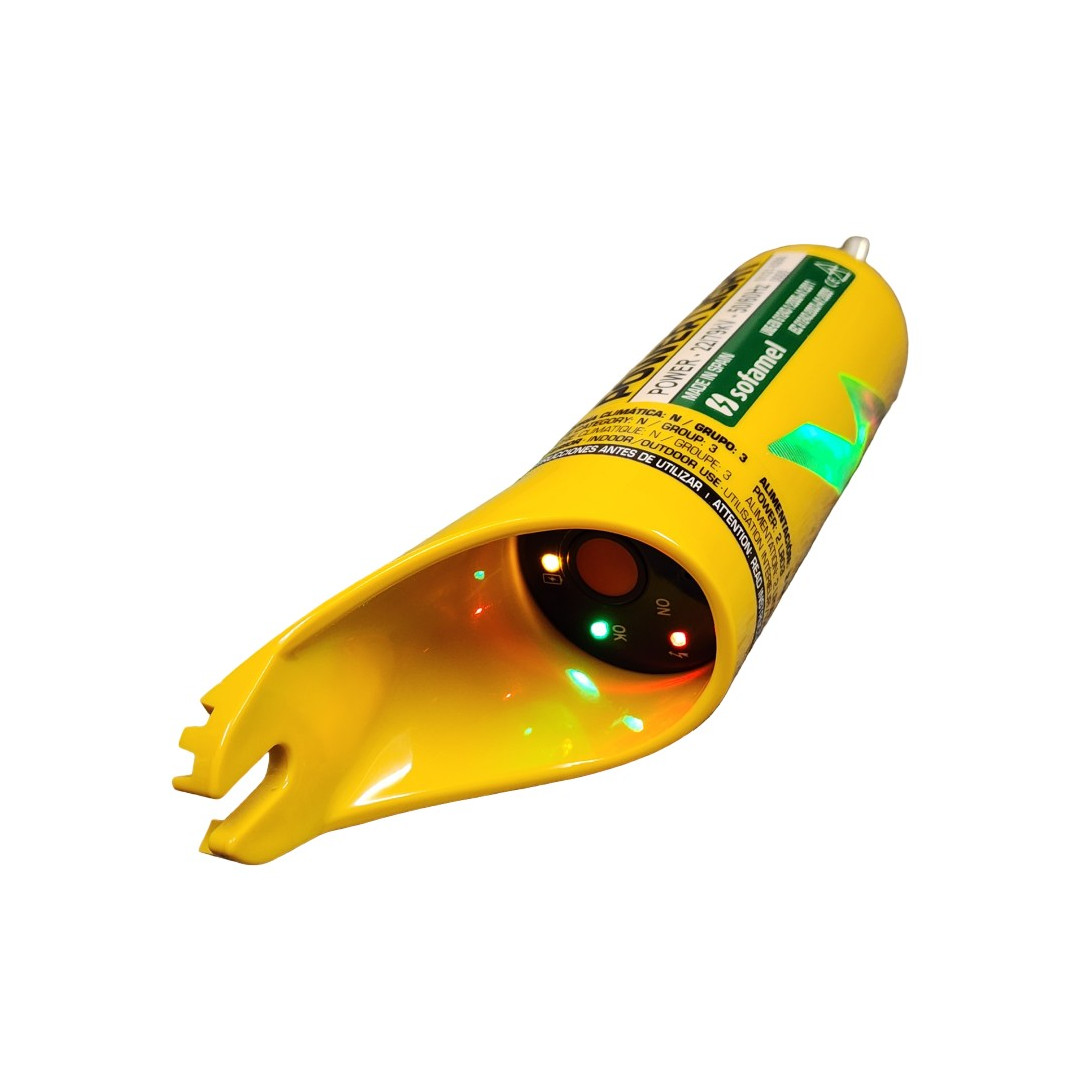

• Voltage presence indicator using multiple high luminosity red LEDs at 360º and intermittent 79 dB acoustic signal using a buzzer.
• Indicator of the absence of voltage using multiple green LEDs of high luminosity at 360º.
• Low battery is indicated by an orange LED.
• Self-verification system for the complete circuit by pressing the test button.
• Stops working when the battery is low.
• Working temperature range: -25° C to +55° C.
• Auto-ignition when voltage is present.
• Automatic shutdown to standby mode
• Indoor and outdoor use through an insulating pole suitable for the voltage range of the detector. Coupling to the pole using a universal head.
• Batteries included 2xAAA, greater capacity and durability.

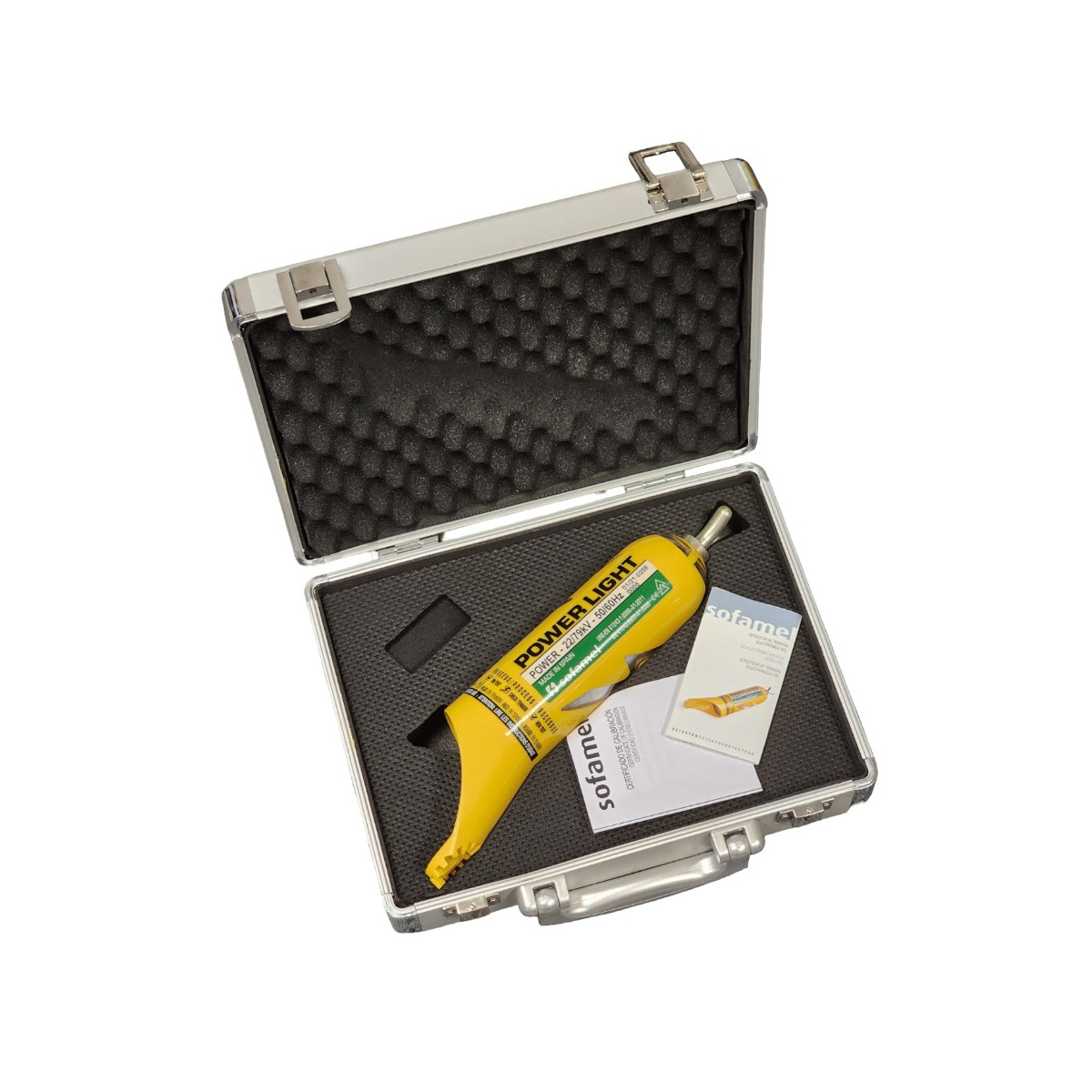

• Supplied in reinforced case.
• Frequency: 50 / 60 Hz.
• Power supply: 1.5V AAA alkaline battery.
• According to standards IEC 61243:2003+A1:2009 and UNE-EN 61243-1:2006+A1:2011.
• MOQs may apply.
• Delivery lead time approximately 6-8 weeks.

Model Range

• Sofamel POWER-1/3,3 Electronic Voltage Detector, 1 to 3.3 kV
• Sofamel POWER-3/10 Electronic Voltage Detector, 3 to 10 kV
• Sofamel POWER-4/12 Electronic Voltage Detector, 4 to 12 kV
• Sofamel POWER-10/30 Electronic Voltage Detector, 10 to 30 kV
• Sofamel POWER-10/36 Electronic Voltage Detector, 10 to 36 kV
• Sofamel POWER-11/33 Electronic Voltage Detector, 11 to 33 kV
• Sofamel POWER-13/45 Electronic Voltage Detector, 13 to 45 kV
• Sofamel POWER-15/45 Electronic Voltage Detector, 15 to 45 kV
• Sofamel POWER-22/66 Electronic Voltage Detector, 22 to 66 kV
• Sofamel POWER-22/79 Electronic Voltage Detector, 22 to 79 kV
