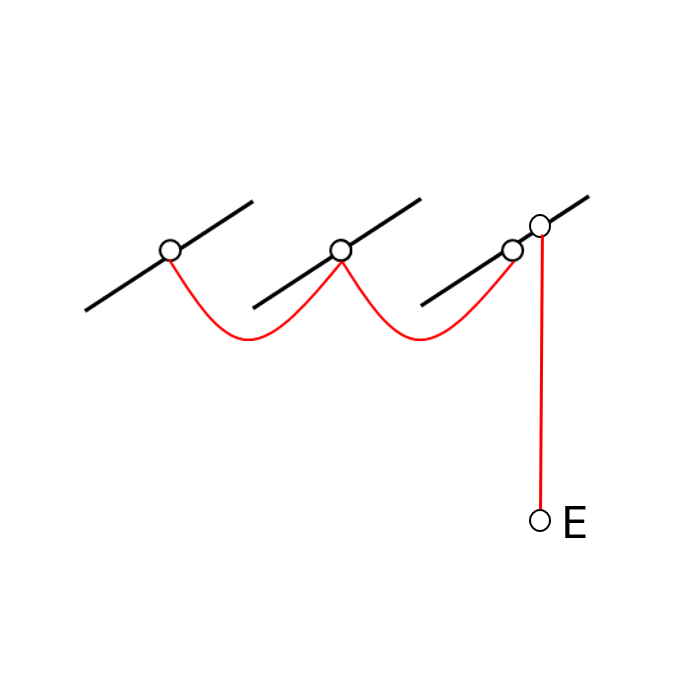

3-Phase Snap-On Set with Separate Earth Cable
Our most popular snap-on set configuration that minimises the weight loaded on an operating pole while providing that sought after speed of application and removal. 20% lighter than the industry average weight of an equivalent snap-on set.

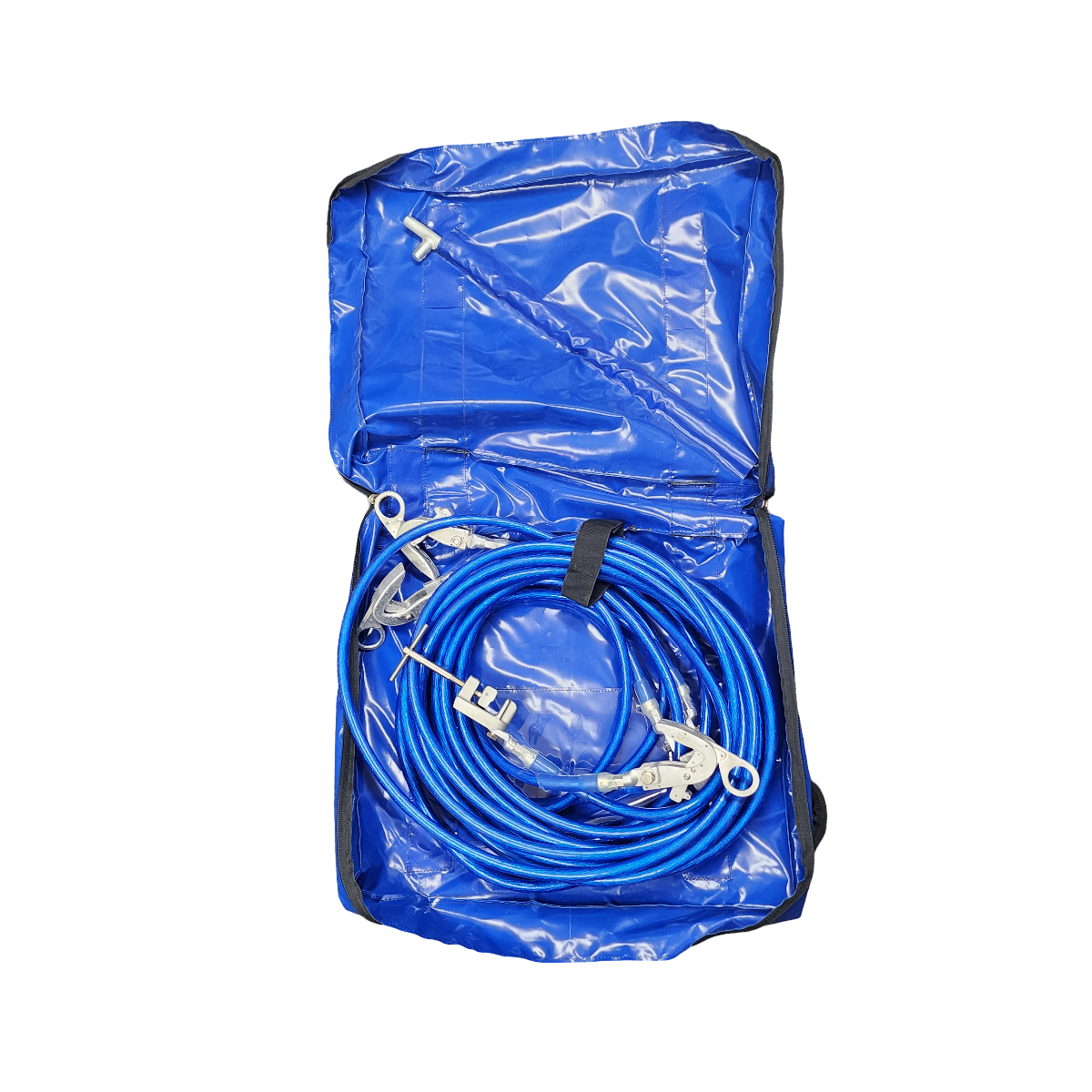

4 x Snap-on Clamp 30 2 x 3m 70mm2 AL Blue Line Cable 1 x 14m 70mm2 AL Blue Earth Cable 1 x 760mm earth spike 1 x Blue Equipment Bag 1 x Applicator 16kA for 0.5s
Engineered for performance, our Snap-On Clamp 30 weighs just 360g. It delivers a smooth, reliable snap-on action and effortless removal with our applicator. With a 6–30mm jaw opening and tested to 16kA for 0.5s, it meets IEC 61230 compliance for safety and reliability in demanding environments.
Our earth spike, also known as a ground rod or earth rod, is a metal rod driven into the ground to provide a low-resistance path to the earth. Its primary purpose is to ensure the safety and proper functioning of electrical systems by grounding them.
Our equipment bags are made of Toptarp(R), premier heavy weight PVC The acrylic lacquer coating prolongs resistance to U/V degradation Flame retardant treated Robust Water resistant Sized to fit to your requirements Choice of colours
Our most popular snap-on set configuration that minimises the weight loaded on an operating poleOperating poles for portable earthing devices are insulated ... More while providing that sought after speed of application and removal. 20% lighter than the industry average weight of an equivalent snap-on set.
If there is special length, or other special requirements for your Snap-on EarthingElectrical earthing, also known as grounding, is a safety m... More Set not covered by the drop-down options please let us know in the “special requirements” box at the bottom of the page.
Applicator available as optional accessory
In today’s fast-paced field environments, line mechanics need tools that deliver speed, safety, and reliability. That’s why the Snap-On Clamp 30 is becoming the go-to choice for temporary earthingElectrical earthing, also known as grounding, is a safety m... More and conductor connections.
Weighing just 9.04 kg our snap-on set is 20% lighter than the industry average—reducing fatigue during repetitive tasks and improving handling at height. Its smooth snap-on action allows for quick, secure attachment to conductorsAlso known as wires or cables. The conductors are the wire... More, while the upward push-release with an applicator ensures safe, efficient removal. This streamlined operation is ideal for fault response, switching, and scheduled maintenance, where every second counts.
The clamp’s jaw opens from 6mm to 30mm, accommodating a wide range of conductor sizes without the need to carry multiple clamp types. It’s tested to withstand fault currents up to 16kA for 0.5 seconds and fully complies with IEC 61230The IEC standard that governs portable equipment, with or wi... More standards, giving crews confidence in its performance under pressure.
Unlike traditional screw-on clamps, the Snap-On Clamp 30 eliminates the need for manual twist tightening whilst providing a secure grip on the conductor. It’s compatible with standard hot-stick accessories, making it a versatile solution for live-line work and remote application.
In short, the Snap-On Clamp 30 offers a blend of lightweight design, operational speed, and tested durability that aligns perfectly with the demands of modern line work. For crews focused on safety, efficiency, and reliability, it’s a clamp that delivers where it matters most.
Applicator and 760mm earth spike included.
330760 334833 331350
Operating and maintenance manual
70mm2 AL, 11kA for 1s
Yes
3
15
Aluminium
Fixed Handle, Bayonet, T-Bar, Screwdriver
760 mm, 900 mm
Green, Yellow, Blue, Red, Black
