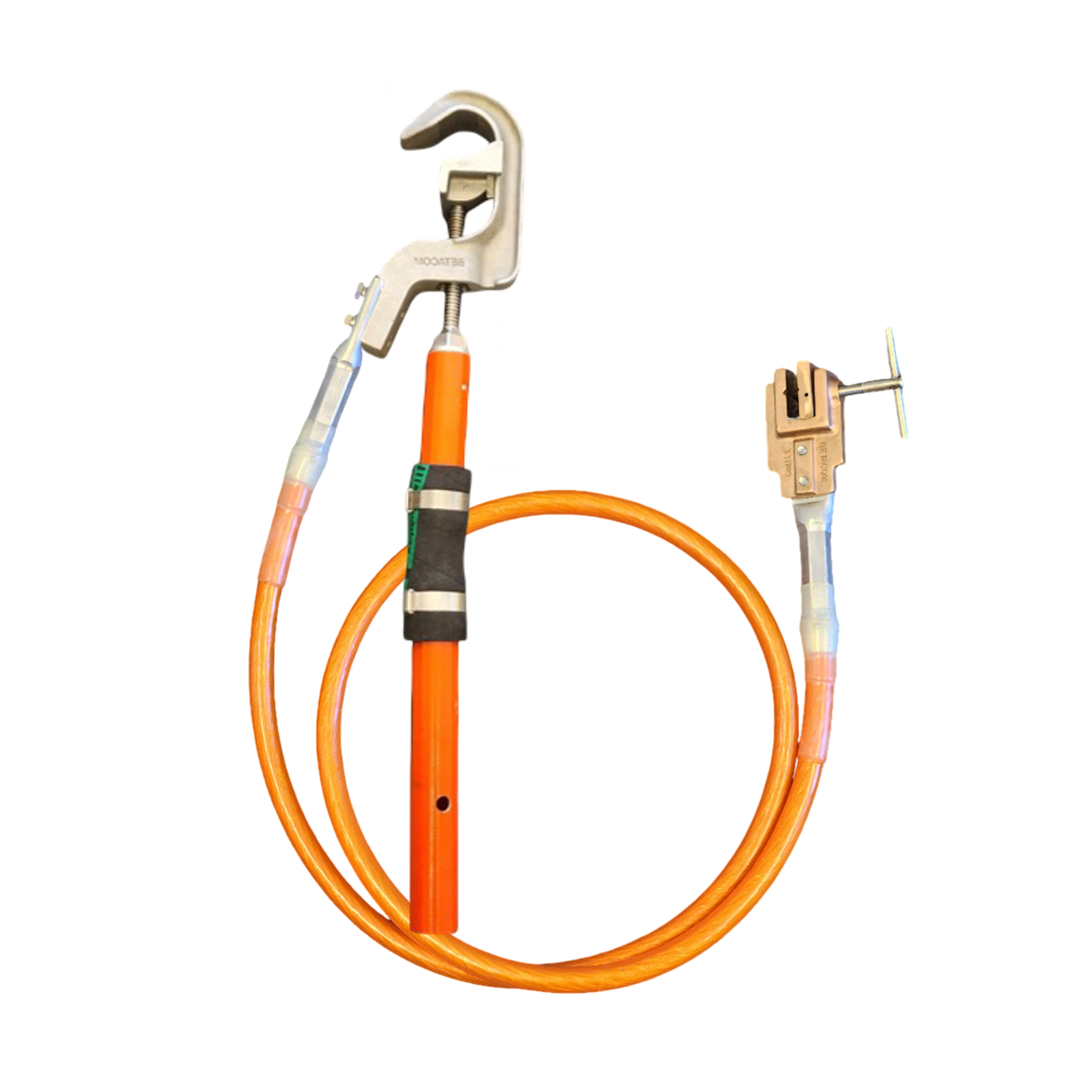

Our Single Phase Earthing Set (aka jumpers, bonders, depending on the application) are cables with clamps at both ends.
Any combination of clamps and cables can be accommodated.
Here below you can select the components you’d like included in your set. At the bottom, click “Submit” to put your customised set into the cart. At which point you can continue to shop or submit the set and the quantity you need to request a quote.

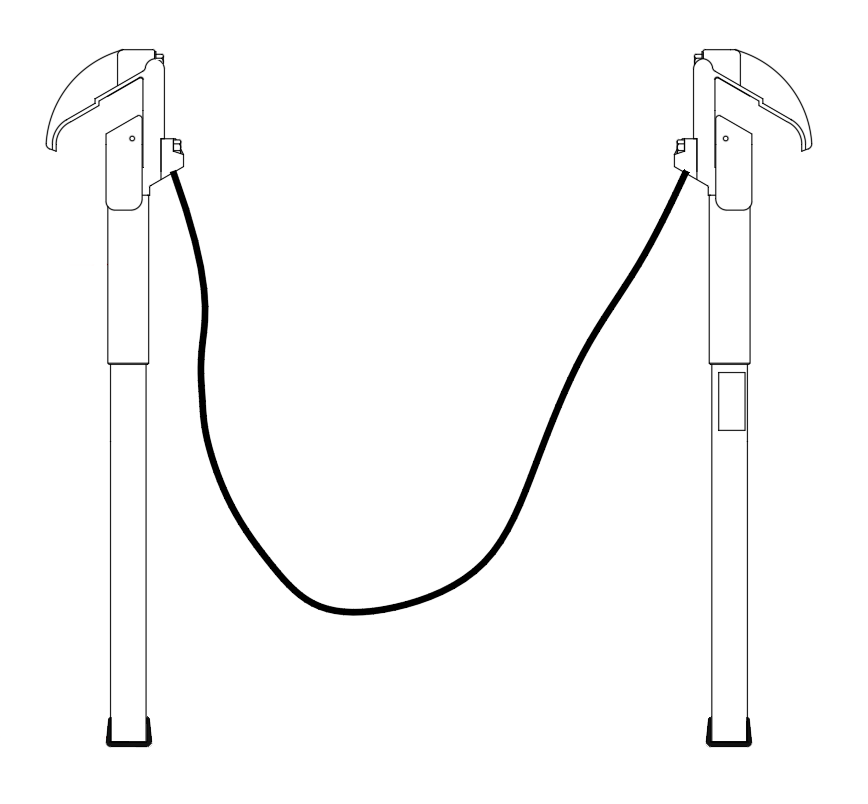

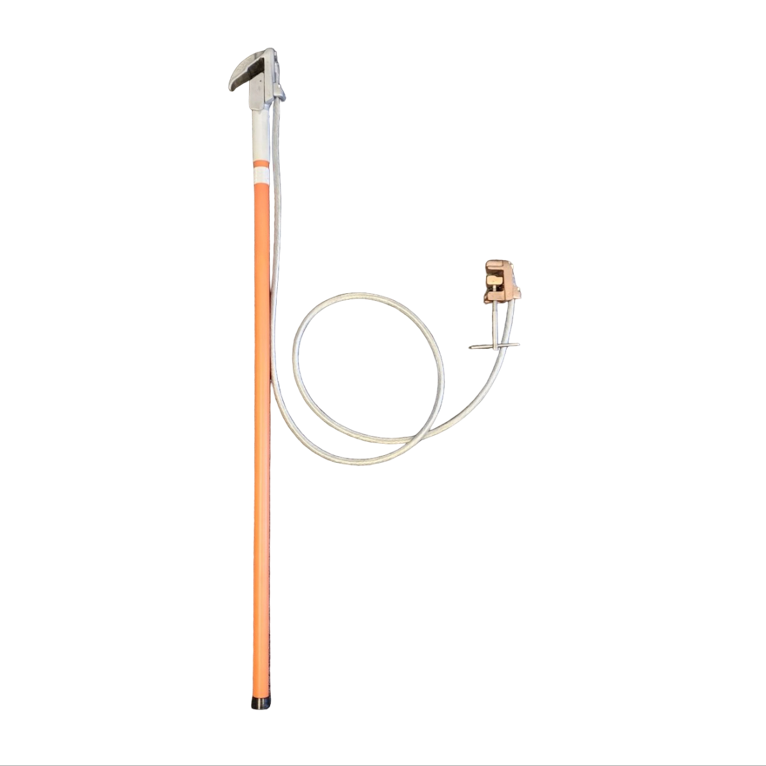

Our Line Clamp 38 has given our customers decades of reliable operation. Our design comes with options for different attachments and a dog clutch mechanism for enhanced control.

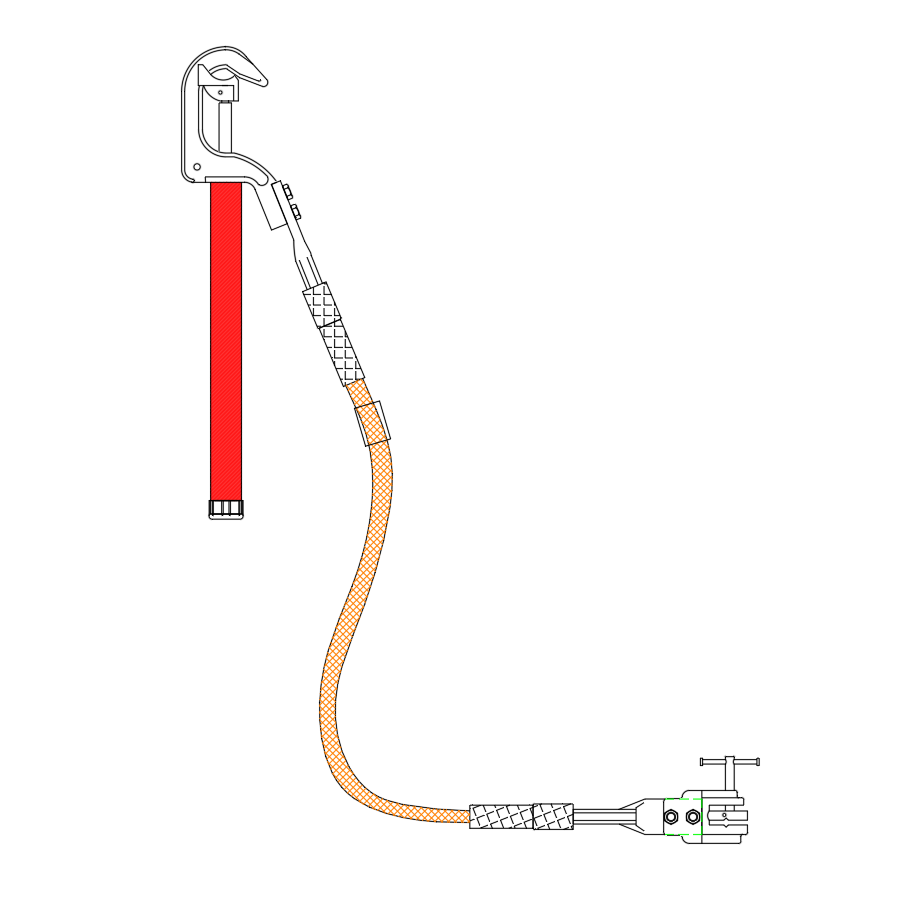

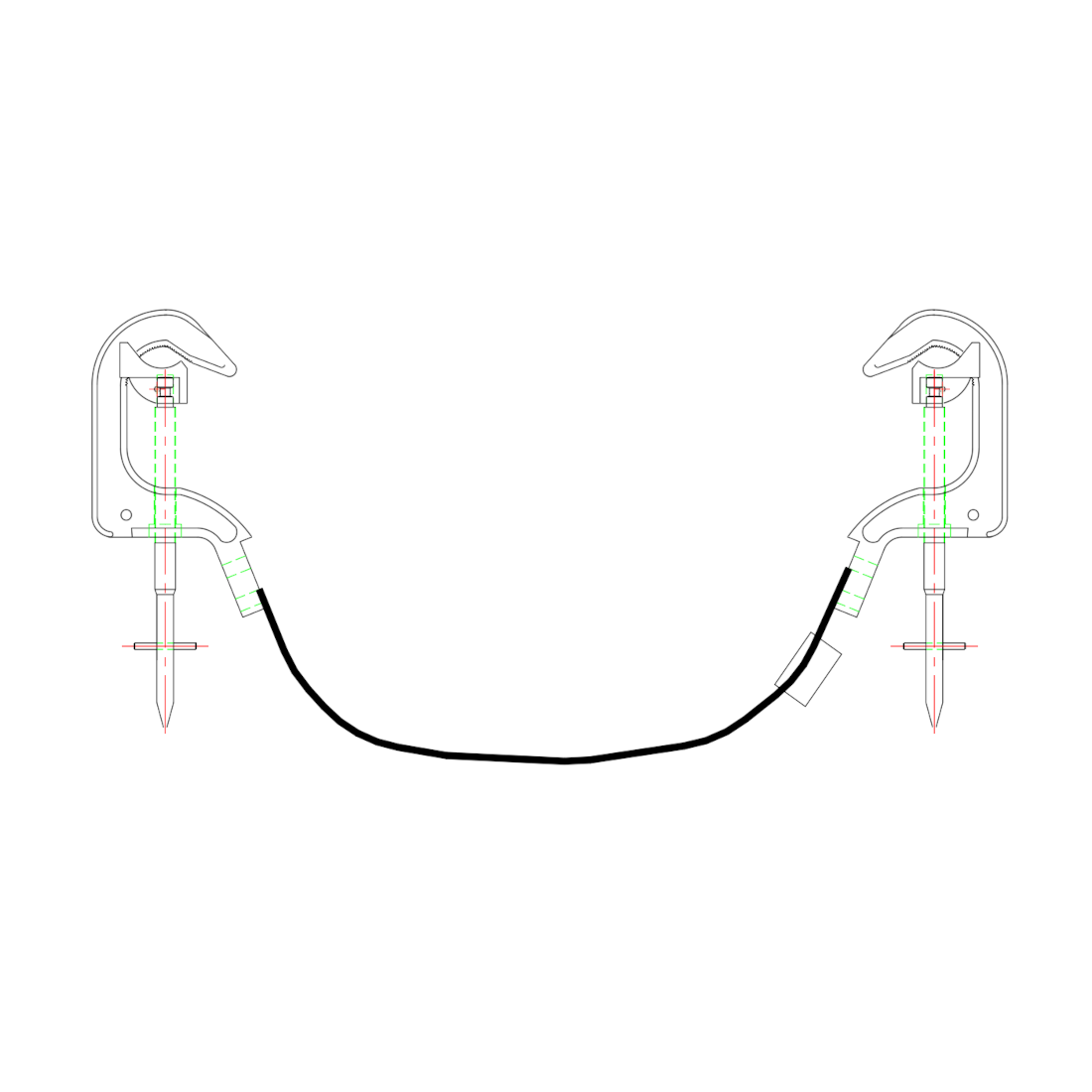

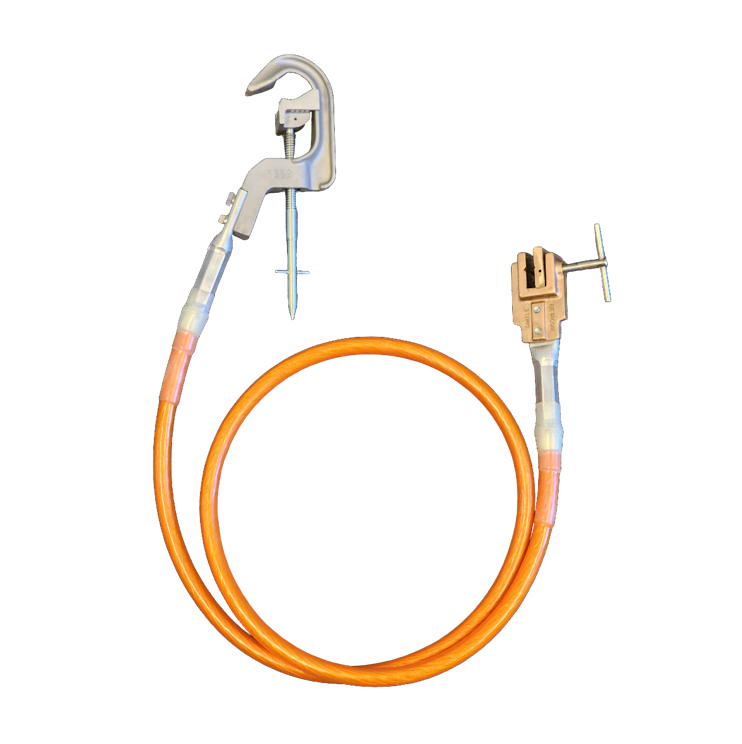

Our Line Clamp 55 has given our customers decades of reliable operation. Our design comes with options for different attachments and an optional dog clutch mechanism for enhanced control.
Our Line Clamp 80 has given our customers decades of reliable operation. Our design comes with options for different attachments and an optional dog clutch mechanism for enhanced control.
Ground Clamp with 0-42mm jaw height. Made of cast bronze, ideal for transmission system earthing applications that need a wider jaw height.
Our handles are made from durable, non-conductive PVC or Fibreglass material. We ensure that they can withstand the mechanical stress and environmental conditions you are likely to encounter. We make sure they are properly sealed so that they are moisture resistant. Our handles are light for easy transportation and handling. We also customise labelling to help ensure safe operation.
Our equipment bags are made of Toptarp(R), premier heavy weight PVC The acrylic lacquer coating prolongs resistance to U/V degradation Flame retardant treated Robust Water resistant Sized to fit to your requirements Choice of colours

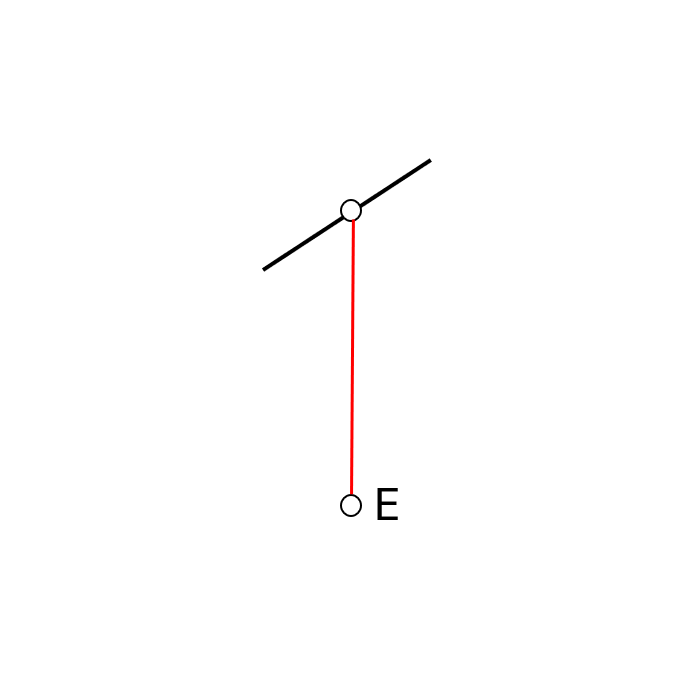

Our Single Phase EarthingElectrical earthing, also known as grounding, is a safety m... More Set (aka jumpers, bonders, depending on the application) are cables with clamps at both ends.
If there is special length, or other special requirements not covered by the drop-down options please let us know in the “special requirements” box at the bottom of the page.

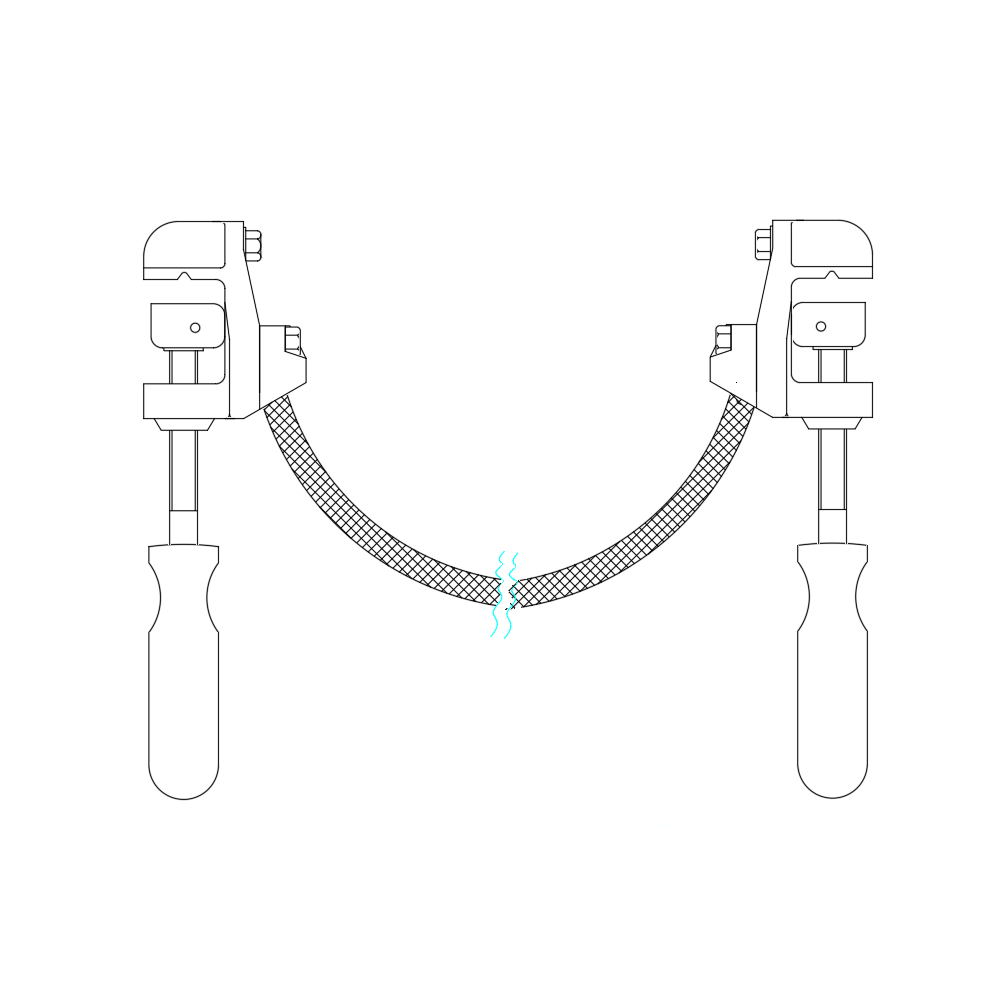

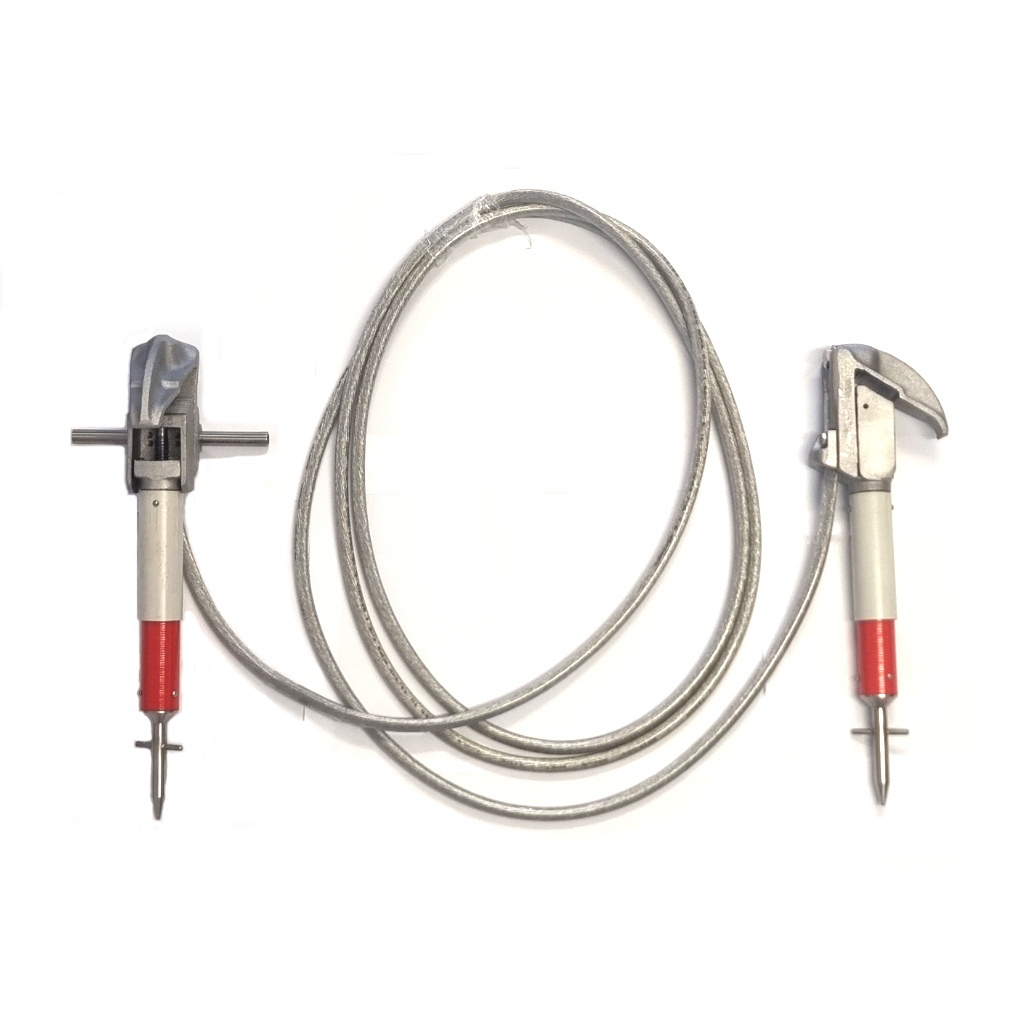

The gallery images are only examples of what you can put together.

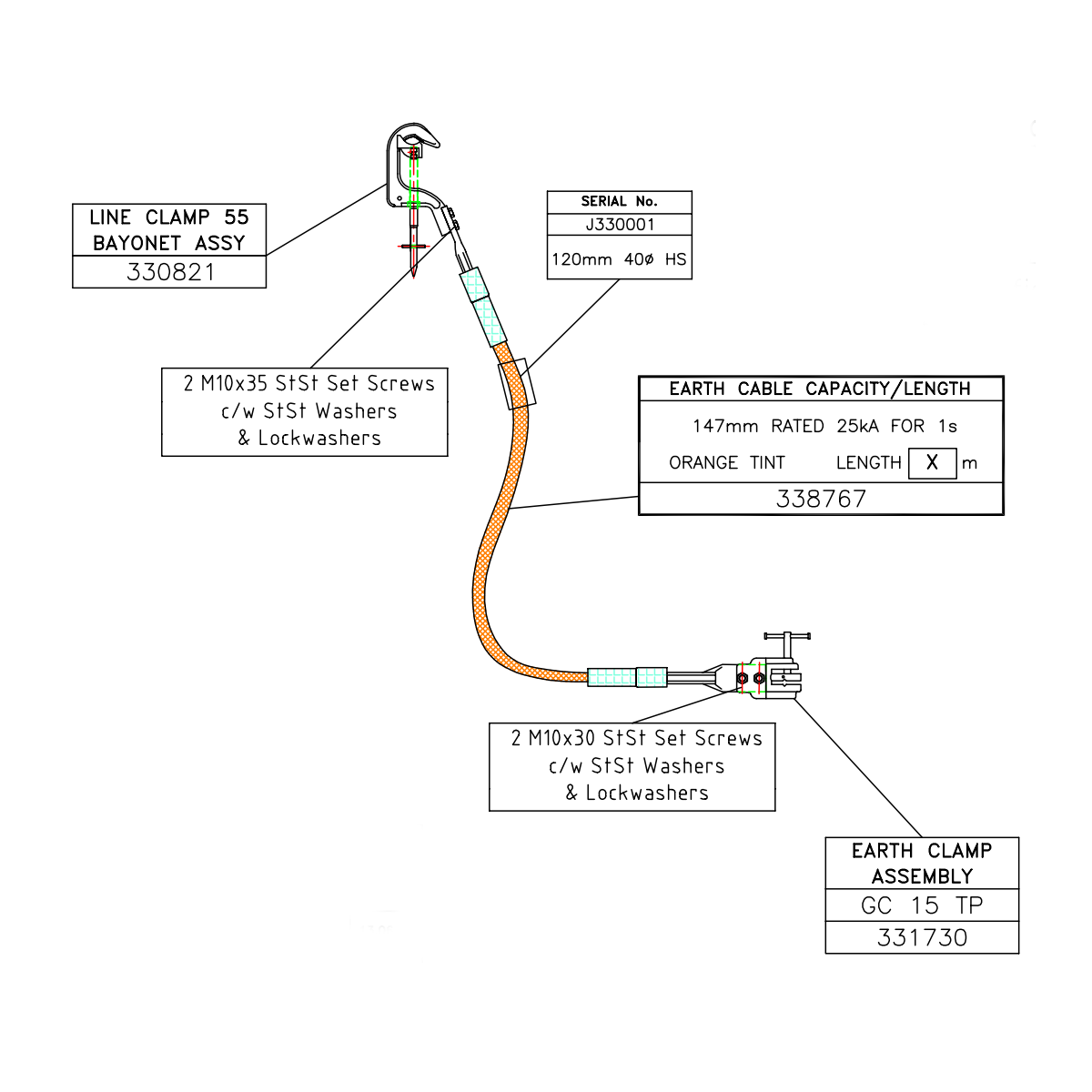

Sample drawing number(s):
330131 330136 330150 330151 330191 330306
Fixed Handle with Button Joint, Fixed Handle with Flexi-Joint, Bayonet, Bayonet with Dog Clutch, Shotgun, Pfisterer Bayonet, T-Bar, Screwdriver
Fixed Handle with Button Joint, Fixed Handle with Flexi-Joint, Bayonet, Bayonet with Dog Clutch, Shotgun, Pfisterer Bayonet, T-Bar
Fixed Handle with Flexijoint, Fixed Handle with Button Joint, Bayonet, Bayonet with Dog Clutch, Shotgun, Pfisterer Bayonet
Fixed Handle, Bayonet, T-Bar, Screwdriver
25mm2 CU, 35mm2 CU, 10 kA for 1s, 35mm2 CU, 11.5s for 0.5s, 50mm2 CU, 147mm2 AL
Yes, No
0.5, 1, 1.5, 2, 3, 5, 7, 10, 15, 20, 30, 40, 50, 100, 300, 500, 750, 1000
Fibreglass
32mm, 40mm
1.2, 1.8, 2, 3
Orange, Yellow
Fibreglass, PVC
Green, Yellow, Blue, Red, Black
