SEW 375HP VOLTAGE DETECTOR 240V-275KV AC

Description

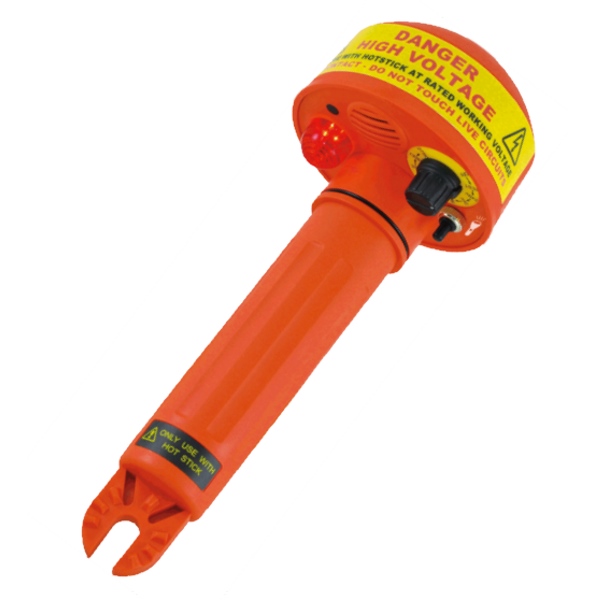

The SEW 375 HP High VoltageAny voltage exceeding 1000 V a.c. or 1500 V d.c. More Detector is a tool for checking the presence of AC high voltages and low voltages.
It has eight voltage detection settings from 240V AC to 275kV AC.

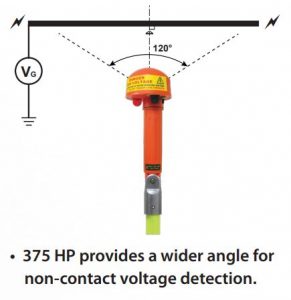

This Voltage Detector provides a wider angle for non-contact detection of AC voltages with an internal pickup sensor plate.

SEW 375 HP High VoltageAny voltage exceeding 1000 V a.c. or 1500 V d.c. More Detector Features:

• Protection class : IP65.
• 8 voltage settings : 240V, 2kV, 6kV, 11kV, 22kV, 33kV, 132kV, 275kV
• Bright LED visual indication
• Frequency range: 40~70Hz
• Flashlight function
• Wider angle for voltage detection(120°)
• Audible indication
• Easy-to-prove method
• Self-test function
• Power source : 1.5V “C” type battery × 3
• High impact nylon casing
• Non-contact work by proximity
• Compatible with most hot sticksOperating poles for portable earthing devices are insulated ... More
• Lightweight, robust & compact
• Suitable for indoor and outdoor use
• Easy access to batteries.
• Warranty: 12 months
• The kit contains:
• Instrument SEW 375 HP
• Test report
• Carry case
• Battery (3 x 1.5 V, C size)
• Instructions for use
• Compliant with EN 61326-1, EN 61000-4-2, EN 61000-4-3, EN 61000-4-8

Download the Datasheet
