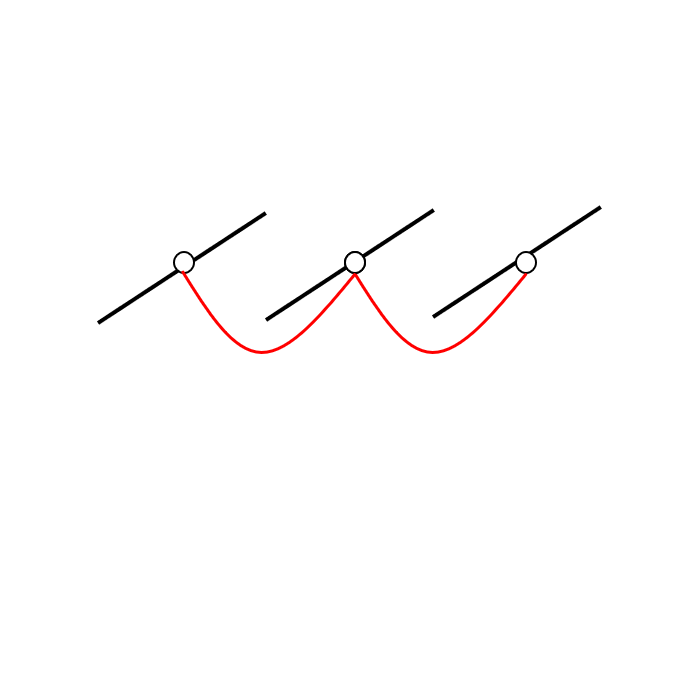

Serial Earthing Set is for bonding multiple conductors together, with option to allow one or more clamps to be earthed.
This configuration is lighter because it removes the weight of a junction block, and a separate earth lead means there is less weight to be hoisted up together.
Here below you can select the components you’d like included in your set. At the bottom, click “Submit” to put your customised set into the cart. At which point you can continue to shop or submit the set and the quantity you need to request a quote.
If there is special length, or other special requirements for your Serial Earthing Set is for bonding multiple conductors together, with option to allow one or more clamps to be earthed.not covered by the drop-down options please let us know in the “special requirements” box at the bottom of the page.
Our Line Clamp 38 has given our customers decades of reliable operation. Our design comes with options for different attachments and a dog clutch mechanism for enhanced control.

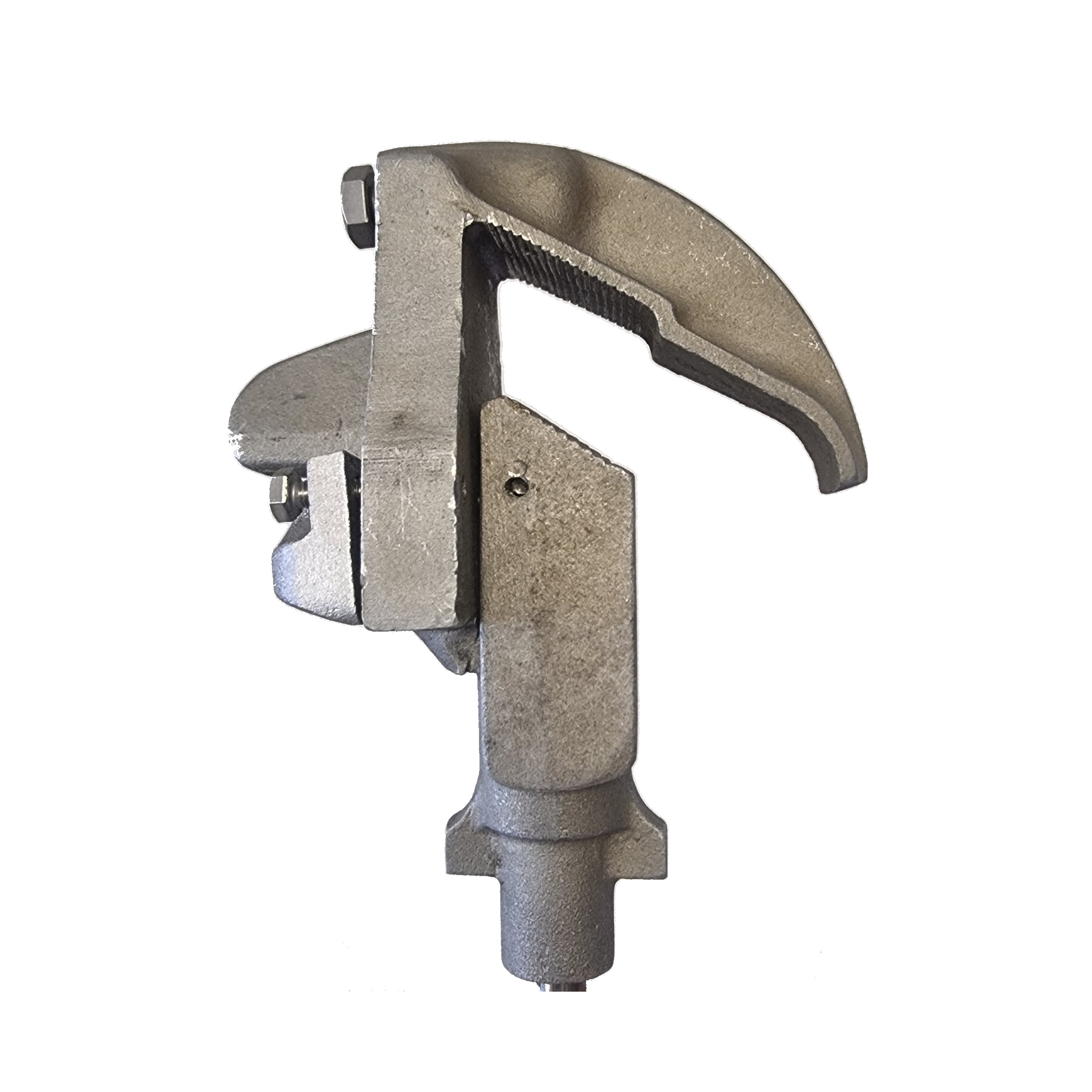

Cast aluminium clamp with nominal jaw opening 3 mm to 38mm that supports two cables
Ground Clamp with 0-42mm jaw height. Made of cast bronze, ideal for transmission system earthing applications that need a wider jaw height.
Our equipment bags are made of Toptarp(R), premier heavy weight PVC The acrylic lacquer coating prolongs resistance to U/V degradation Flame retardant treated Robust Water resistant Sized to fit to your requirements Choice of colours
Serial EarthingElectrical earthing, also known as grounding, is a safety m... More Set is for bondingElectrical bonding and grounding are crucial safety measure... More multiple conductors together, with option to allow one or more clamps to be earthed.
Typically

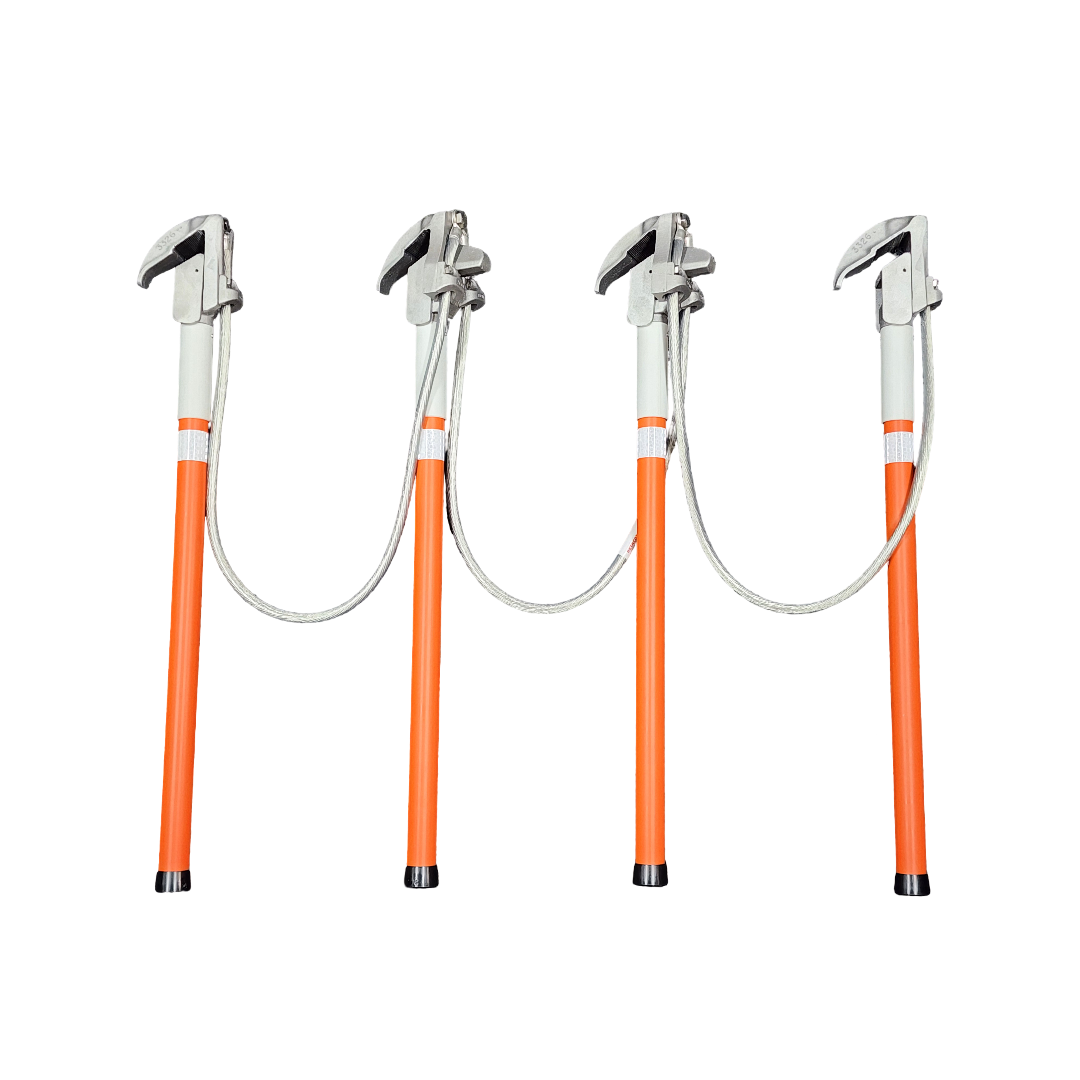

Up to 2 x Line Clamp 38
Up to 5 x Line Clamp 38 Twin Cable
4 x Line Cables, 35mm CU tested to 10kA for 1s
Clamp HandleAn operating pole designed to be permanently attached to a l... More Sections
The number of clamps can be specified to requirements
The end clamp can be Line Clamp 38 Twin Cable models allowing an earthingElectrical earthing, also known as grounding, is a safety m... More cable with an appropriate ground clamp to be added
If there is special length, or other special requirements for your Serial EarthingElectrical earthing, also known as grounding, is a safety m... More Set not covered by the drop-down options please let us know in the “special requirements” box at the bottom of the page.
Applicable Drawing Numbers
330046 330047
Fixed Handle with Button Joint, Fixed Handle with Flexi-Joint, Bayonet, Bayonet with Dog Clutch, Shotgun, Pfisterer Bayonet, T-Bar, Screwdriver
25mm2 CU, 35mm2 CU, 10 kA for 1s, 35mm2 CU, 11.5s for 0.5s, 50mm2 CU, 147mm2 AL
Yes, No
0.5, 1, 1.5, 2, 3, 5, 7, 10, 15, 20, 30, 40, 50, 100, 300, 500, 750, 1000
25mm2 CU, 35mm2 CU 10.0 kA for 1s, 35mm2 CU, 11.5 kA for 1s, 50mm2 CU, 147mm2 AL
0.5, 1, 2, 3, 5, 7, 10, 15, 20, 30, 40, 50, 100, 300, 500, 750, 1000
Fixed Handle, Bayonet, T-Bar, Screwdriver
Green, Yellow, Blue, Red, Black
