Our Line Clamp 38 has given our customers decades of reliable operation. Our design comes with options for different attachments and an optional dog clutch mechanism for enhanced control.
Cast aluminium
Nominal jaw opening 3mm to 38 mm
Jaw surfaced machined with teeth to break dirt and oxidation barriers on overhead line conductors
Dog clutch for enhanced operator control of line clamp.
Mechanical support saddle minimises fatigue on cable and termination lug.
ACME spindle thread speeds up opening and closing action.
Jaw step provides secure attachment of cable.
Fibreglass handleAn operating pole designed to be permanently attached to a l... More option 32 mm OD.
PVC handleAn operating pole designed to be permanently attached to a l... More length 1.2m max.

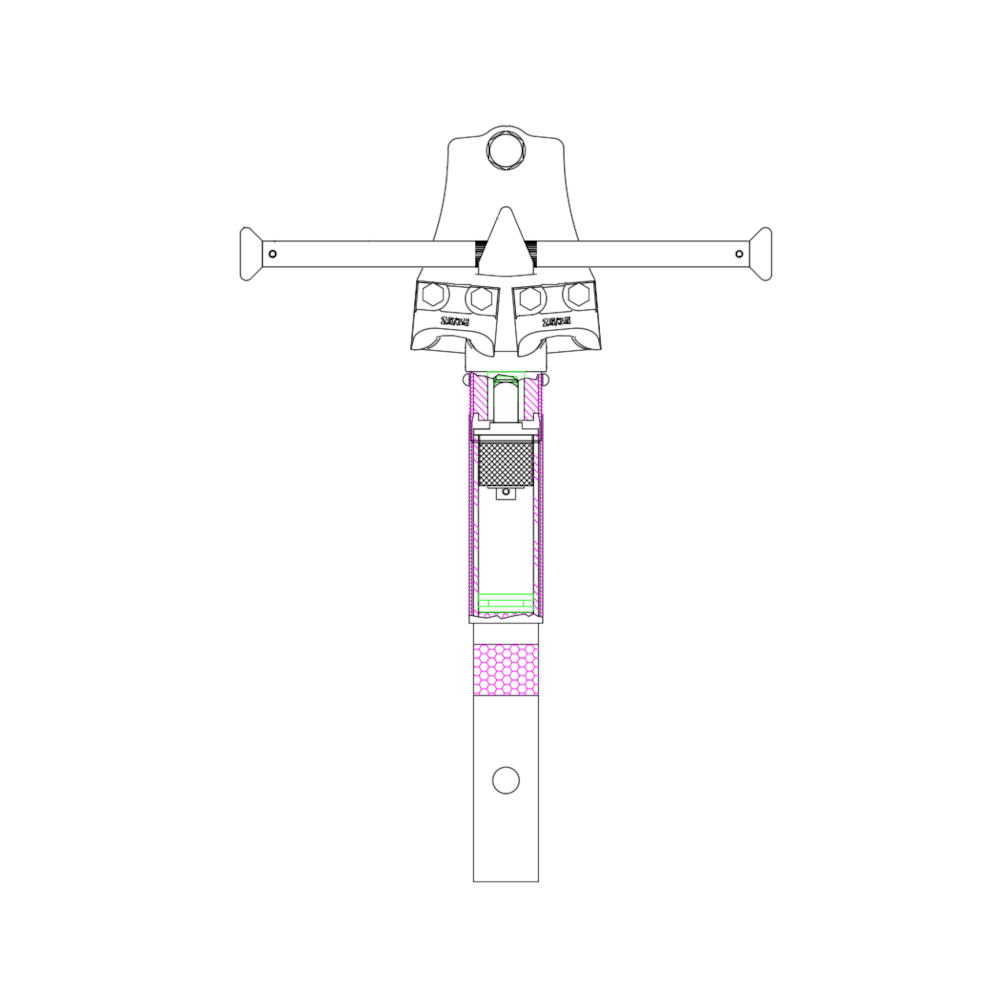

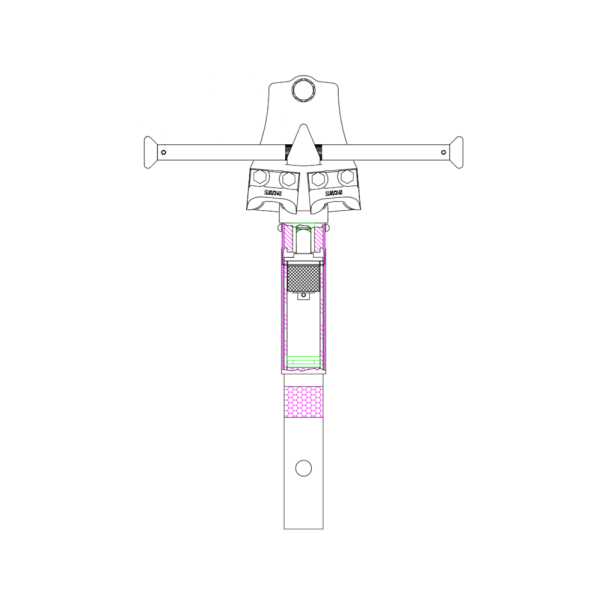

Drawing No 332694
Fixed Handle with Button Joint, Fixed Handle with Flexi-Joint, Bayonet, Bayonet with Dog Clutch, Shotgun, Pfisterer Bayonet, T-Bar, Screwdriver
