Line Cable

Translucent double layered insulation
Lay, strand and cluster specifications optimised for flexibility and resistance
Lug installation processes optimised to minimise fatigue and stress failure
If there is special length, or other special requirements not covered by the drop down options please let us know in the “special requirements” box at the bottom of the page.

Type

Lugs

Length (metres)

Clear

Special Requirements & Additional Notes

Product total

Options total

Grand total

SKU: N/A Category: Individual Parts

Description

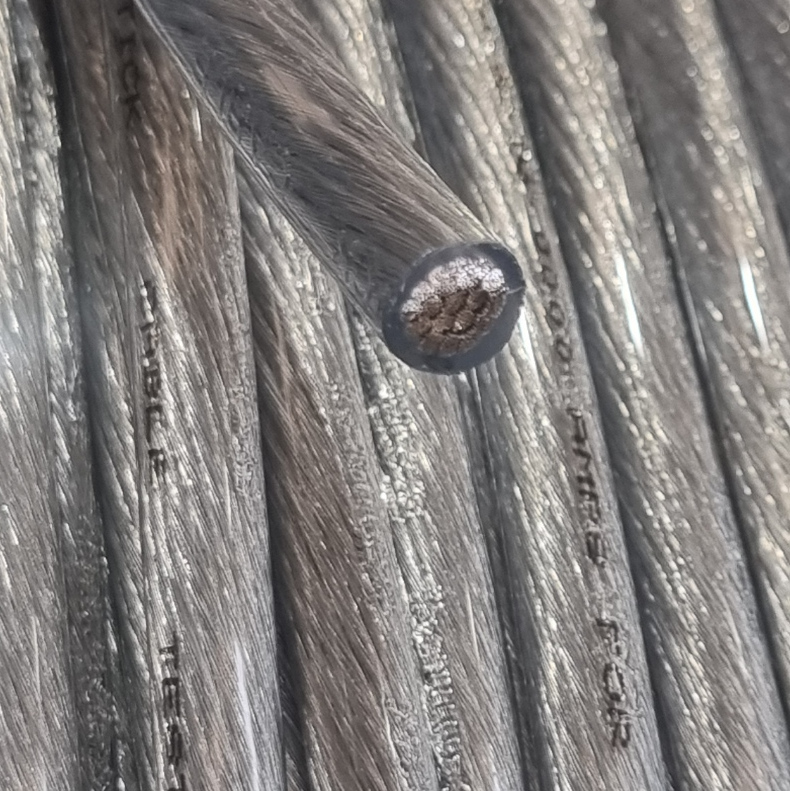

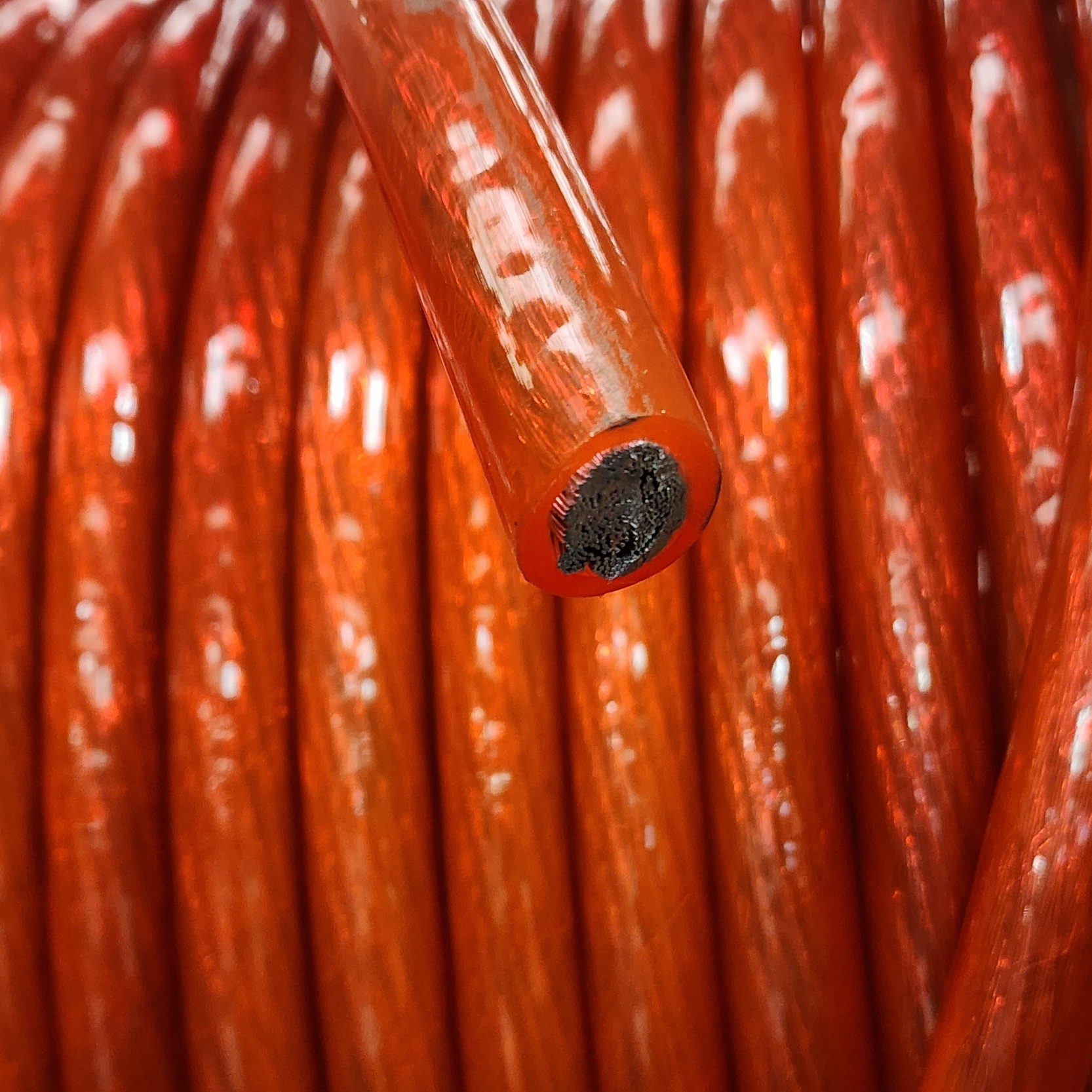

Translucent insulation to enable line cable strand integrity to be established
Double layered insulation on aluminium cable to protect labelling on inner layer
LayPertaining to wire and cable, the axial distance required fo... More, strand and cluster specifications optimised for flexibility and conductivity
Lug installation processes optimised to minimise fatigue and stress failure
Copper (CU) cable is tin plated to improve corrosion resistance and extend its lifespan
Compliant with IEC 61138IEC 61138:2007 is an international standard that applies to ... More
Note: After a short circuitEach transmission line typically carries one or two transmis... More or fault event, the PEDA portable earthing device in the power industry is a safety... More should be retired, replaced and not reused.

Cable Type	Nominal cross- sectional area (mm²)	kA for 1s	kA for 0.5s	Insulation thickness, mm	Approx. outside diameter, mm	kg per metre
Copper	25	6.0	8.5	2.0	9.8	0.3
Copper	35	11.5	16.0	2.0	11.0	0.4
Copper	50	16.0	23.0	2.0	12.3	0.5
Aluminium	70	17.5	25	2.0	13.5	0.3
Aluminium	147	25.0	35.4	2.4	19.0	0.6

Additional information

Type	25mm2 CU, 6kA for 1s, 35mm2 CU, 10.0 kA for 1s, 35mm2 CU, 11.5 kA for 1s, 50mm2 CU, 16kA for 1s, 70mm2 AL, 11kA for 1s, 147mm2 AL, 25kA for 1s
Lugs	Yes, No
Length (metres)	0.5, 1, 1.5, 2, 3, 5, 7, 10, 15, 20, 30, 40, 50, 100, 300, 500, 750, 1000
