Name: Equipotential Breakaway Bond Set
SKU: 773
Availability: InStock

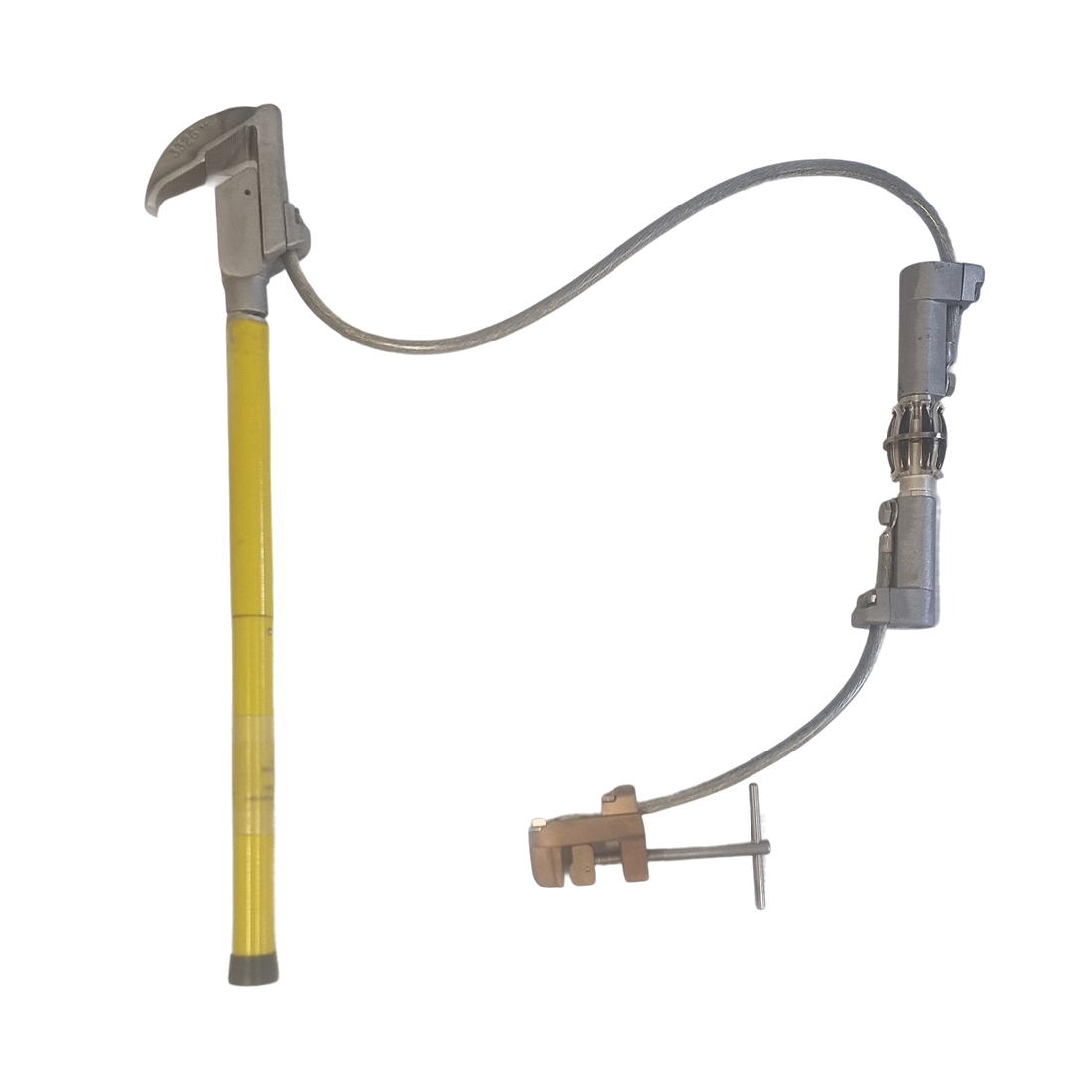

Equipotential Breakaway Bond Set

Breakaway Bond for elevated work platforms

Equipotential Breakaway Bond Set is designed for bucket truck or elevated work platform to line bonding.

It reduces the impact of unintentionally moving a bucket truck or elevated work platform before disconnecting line bonding

Tested to 12 kA for 1 second.
50 mm² CU cable only.
Electrical Resistance: 125 micro-ohms.
Central coupling load test is 22.5 kg min, 35 kg max

Drawing Number: 330599.

Line Clamp 38

Our Line Clamp 38 has given our customers decades of reliable operation. Our design comes with options for different attachments and a dog clutch mechanism for enhanced control.

Add

Line Clamp 55

Our Line Clamp 55 has given our customers decades of reliable operation. Our design comes with options for different attachments and an optional dog clutch mechanism for enhanced control.

Add

Line Clamp 80

Our Line Clamp 80 has given our customers decades of reliable operation. Our design comes with options for different attachments and an optional dog clutch mechanism for enhanced control.

Add

Line Cable

Translucent double layered insulation
Lay, strand and cluster specifications optimised for flexibility and resistance
Lug installation processes optimised to minimise fatigue and stress failure
If there is special length, or other special requirements not covered by the drop down options please let us know in the "special requirements" box at the bottom of the page.

Type *

Lugs *

Length (metres) *

Clear

Earth Cable

Translucent double layered insulation
Lay, strand and cluster specifications optimised for flexibility and resistance
Lug installation processes optimised to minimise fatigue and stress failure
Specify unusual lengths below

Type *

Lugs *

Length (metres) *

Clear

Ground Clamp 15TP

Our NZ Transpower approved ground clamp.
Cast bronze ground clamp
Nominal jaw opening 0-15 mm.
Serrated jaw to improve grip.
Direct T-Bar to spindle attachment.
Stainless steel spindle with M12 thread.

Add

Ground Clamp 27

Add

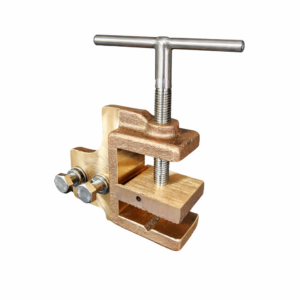

Ground Clamp 42

Ground Clamp with 0-42mm jaw height. Made of cast bronze, ideal for transmission system earthing applications that need a wider jaw height.

Cast bronze ground clamp
Nominal jaw opening 0-42 mm.
Direct T-Bar to spindle attachment.
Stainless steel spindle with M12 thread.

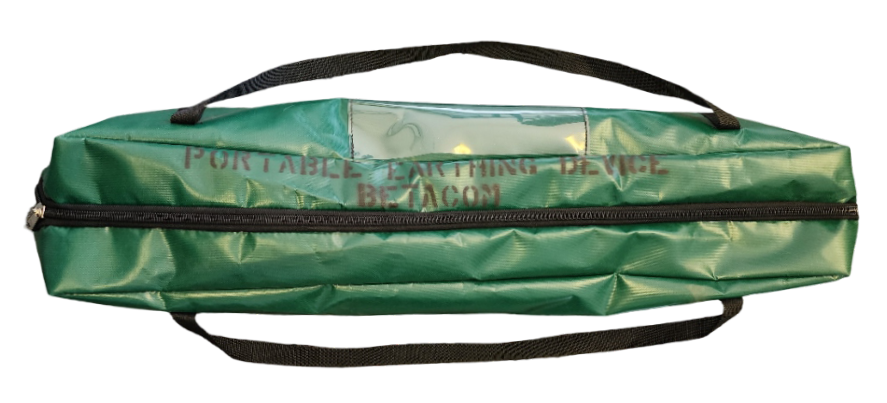

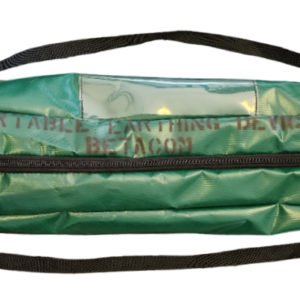

Equipment Bag

Our equipment bags are made of Toptarp(R), premier heavy weight PVC
The acrylic lacquer coating prolongs resistance to U/V degradation
Flame retardant treated
Robust
Water resistant
Sized to fit to your requirements
Choice of colours

Add

Special Requirements & Additional Notes

Product total

Options total

Grand total

Category: Customised Sets

Description
Additional information

Description

Improve safety when bonding bucket trucks or elevated work platforms

Equipotential Breakaway Bond Set is designed for bucket truck or elevated work platform (EWP) to line bondingElectrical bonding and grounding are crucial safety measure... More.

It reduces impact of unintentionally moving a bucket truck or elevated work platform before disconnecting line bondingElectrical bonding and grounding are crucial safety measure... More

Tested to 12 kA for 1 second.
50 mm² CU cable only.
Electrical Resistance: 125 micro-ohms.
Central coupling load test is 22.5 kg min, 35 kg max.
Set comes with equipment bag
The breakaway bond joint is usually covered with a protective cover, but this has been removed so that you can see the joint.
Drawing Number: 330599.
Product Number: FC-P330599-00

Transpower provide the following operational guidance:

“If the Elevated Work Platform has a dedicated earthingElectrical earthing, also known as grounding, is a safety m... More plate on the bucket, then a breakaway bond should always be used.
If the earthingElectrical earthing, also known as grounding, is a safety m... More plate is bolted onto the bucket, it should be tested before use to confirm a resistance of less than 60 micro-ohms.
Always request EWPs fitted with dedicated earthingElectrical earthing, also known as grounding, is a safety m... More plates when hiring plant.
Test any bolted earthingElectrical earthing, also known as grounding, is a safety m... More plates before use. Welded plates are much better and remove the need for testing.
The breakaway bond connected to the personnel bucket of the EWP is the best means of creating an equipotential zoneAn equipotential zone (EPZ) is an area where all metal work ... More to protect workers.”
