Our 3-Phase 1-Earth Portable Earthing Set is lighter than using three separate earthing jumpers. Our junction block can accommodate an extra neutral clamp and a carabiner assembly. The junction block reduces the amount of force applied to the ground clamp under fault conditions.
It’s our most popular customised PED set.

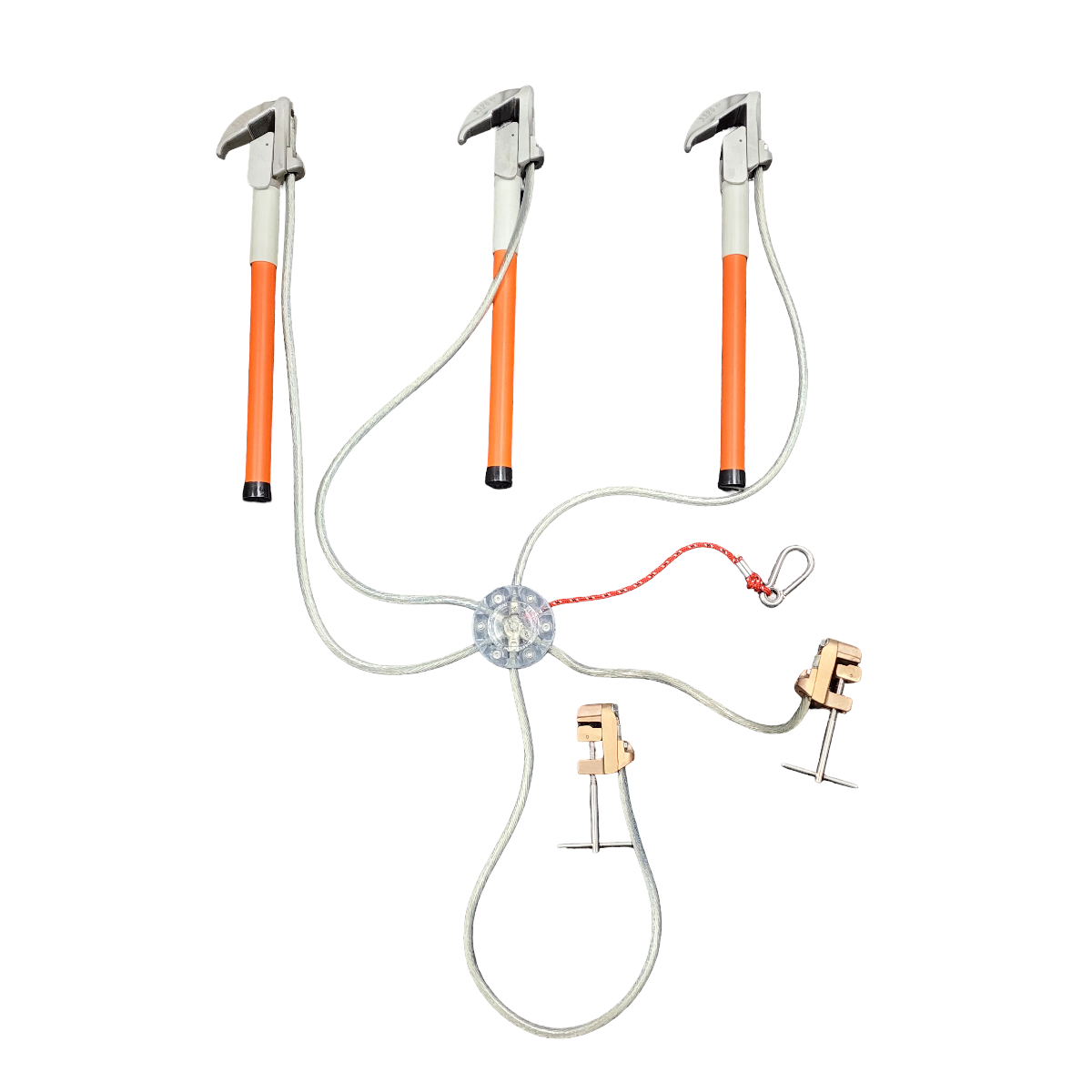

To the left is an illustration of the combination of parts for our most popular customised set, as an example to see. It includes a neutral clamp.
Here below you can select the components you’d like included in your 3-Phase 1-Earth Portable Earthing Set. At the bottom, specify the quantity you’d like and click “Add to Quote” to put your customised set into the cart. At which point you can continue to shop or go to the cart to check your request and if OK, submit the set to request a quote.
Our Line Clamp 38 has given our customers decades of reliable operation. Our design comes with options for different attachments and a dog clutch mechanism for enhanced control.
Our Line Clamp 55 has given our customers decades of reliable operation. Our design comes with options for different attachments and an optional dog clutch mechanism for enhanced control.
Our Line Clamp 80 has given our customers decades of reliable operation. Our design comes with options for different attachments and an optional dog clutch mechanism for enhanced control.
PVC and Fibreglass Clamp Handles. The handles are permanently attached to the Line Clamp or Ground Clamp.
Our handles are made from durable, non-conductive PVC or Fibreglass material. We ensure that they can withstand the mechanical stress and environmental conditions you are likely to encounter. We make sure they are properly sealed so that they are moisture resistant. Our handles are light for easy transportation and handling. We also customise labelling to help ensure safe operation.
Polycarbonate Junction Block
Transparent to enable easy visual inspection
5-Way (70mm2 cable) and 6-Way (35mm2/50mm2) options
Tested in accordance with IEC 61230
Ground Clamp with 0-42mm jaw height. Made of cast bronze, ideal for transmission system earthing applications that need a wider jaw height.

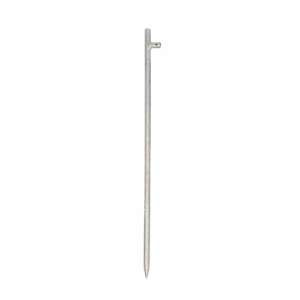

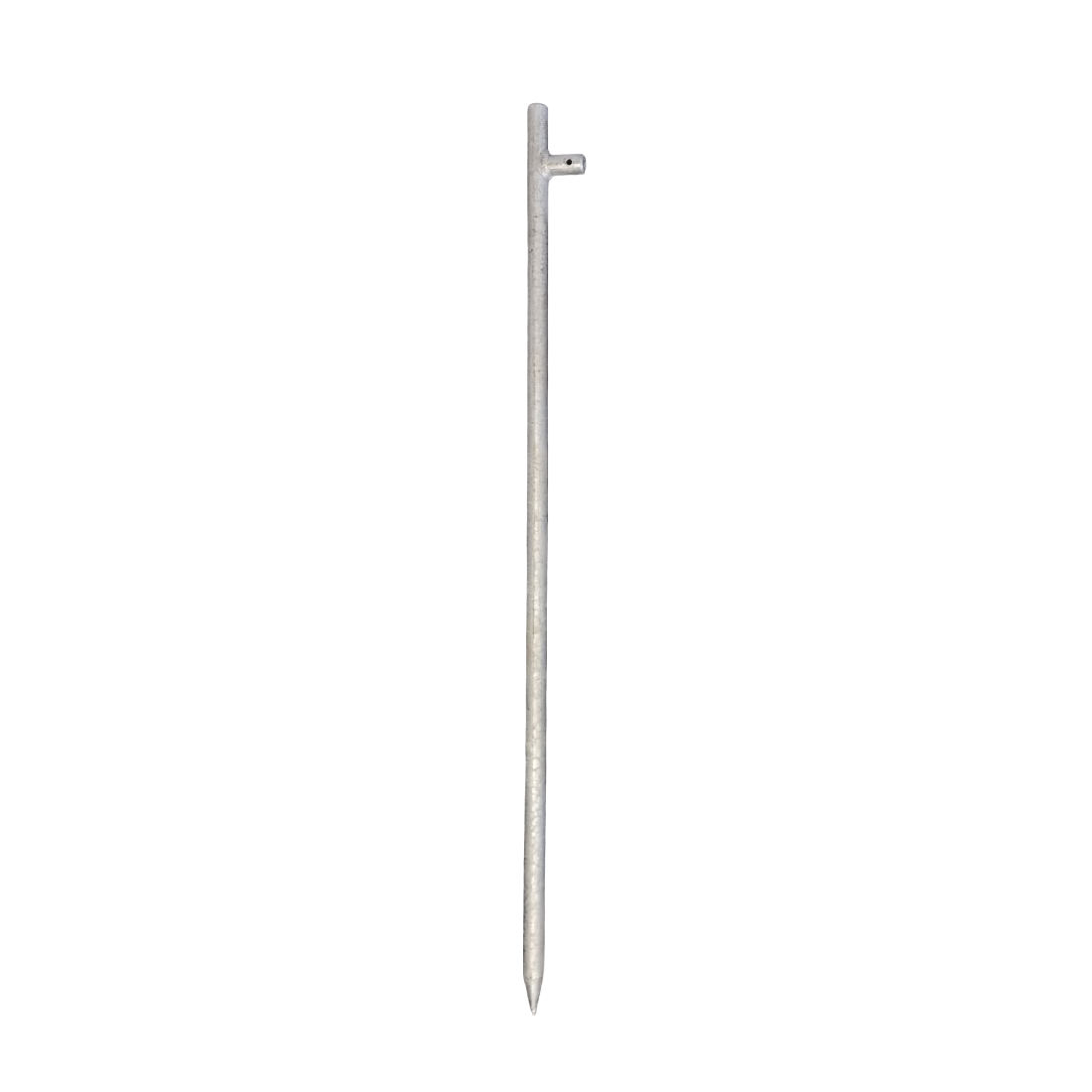

Our earth spike, also known as a ground rod or earth rod, is a metal rod driven into the ground to provide a low-resistance path to the earth. Its primary purpose is to ensure the safety and proper functioning of electrical systems by grounding them.
Our equipment bags are made of Toptarp(R), premier heavy weight PVC The acrylic lacquer coating prolongs resistance to U/V degradation Flame retardant treated Robust Water resistant Sized to fit to your requirements Choice of colours
This is our most popular configuration. Our 3-Phase 1-Earth Portable EarthingElectrical earthing, also known as grounding, is a safety m... More Set is lighter than using three separate earthingElectrical earthing, also known as grounding, is a safety m... More jumpers. Our junction blockA junction block is a device used to connect two or more cab... More can accommodate an extra neutral clamp and a carabiner assembly. It’s our most popular customised set.
Typically this sets consists of:
3 x Line ClampsLine Clamps are devices used to secure a cable to an overhea... More (Line Clamp 38, 55 or 80) with dog clutch and PVC handles
3 x Line Cables
1 x Junction BlockA junction block is a device used to connect two or more cab... More to suit the size (mm2) of cable you require
1 x Earth Cable (the most common lengths are provided, but custom lengths can be specified in the notes box))
1 x Carabiner Assembly, allows the set to be tied to a structure to take the weight of the cable)
1 x Optional Neutral Cable (the most common lengths are provided, but custom lengths can be specified in the notes box)
1 x Optional Equipment Bag
If there is special cable length, or other special requirements you would like for your 3-Phase 1-Earth Portable EarthingElectrical earthing, also known as grounding, is a safety m... More Set not covered by the drop-down options please let us know in the “special requirements” box at the bottom of the page.
