Here below you can select the components you’d like included in your set. At the bottom, click “Submit” to put your customised set into the cart. At which point you can continue to shop or submit the set and the quantity you need to request a quote.
If there is special length, or other special requirements not covered by the drop-down options please let us know in the “special requirements” box at the bottom of the page.
Our handles are made from durable, non-conductive PVC or Fibreglass material. We ensure that they can withstand the mechanical stress and environmental conditions you are likely to encounter. We make sure they are properly sealed so that they are moisture resistant. Our handles are light for easy transportation and handling. We also customise labelling to help ensure safe operation.
Polycarbonate Junction Block
Transparent to enable easy visual inspection
5-Way (70mm2 cable) and 6-Way (35mm2/50mm2) options
Tested in accordance with IEC 61230
Our earth spike, also known as a ground rod or earth rod, is a metal rod driven into the ground to provide a low-resistance path to the earth. Its primary purpose is to ensure the safety and proper functioning of electrical systems by grounding them.
Our equipment bags are made of Toptarp(R), premier heavy weight PVC The acrylic lacquer coating prolongs resistance to U/V degradation Flame retardant treated Robust Water resistant Sized to fit to your requirements Choice of colours

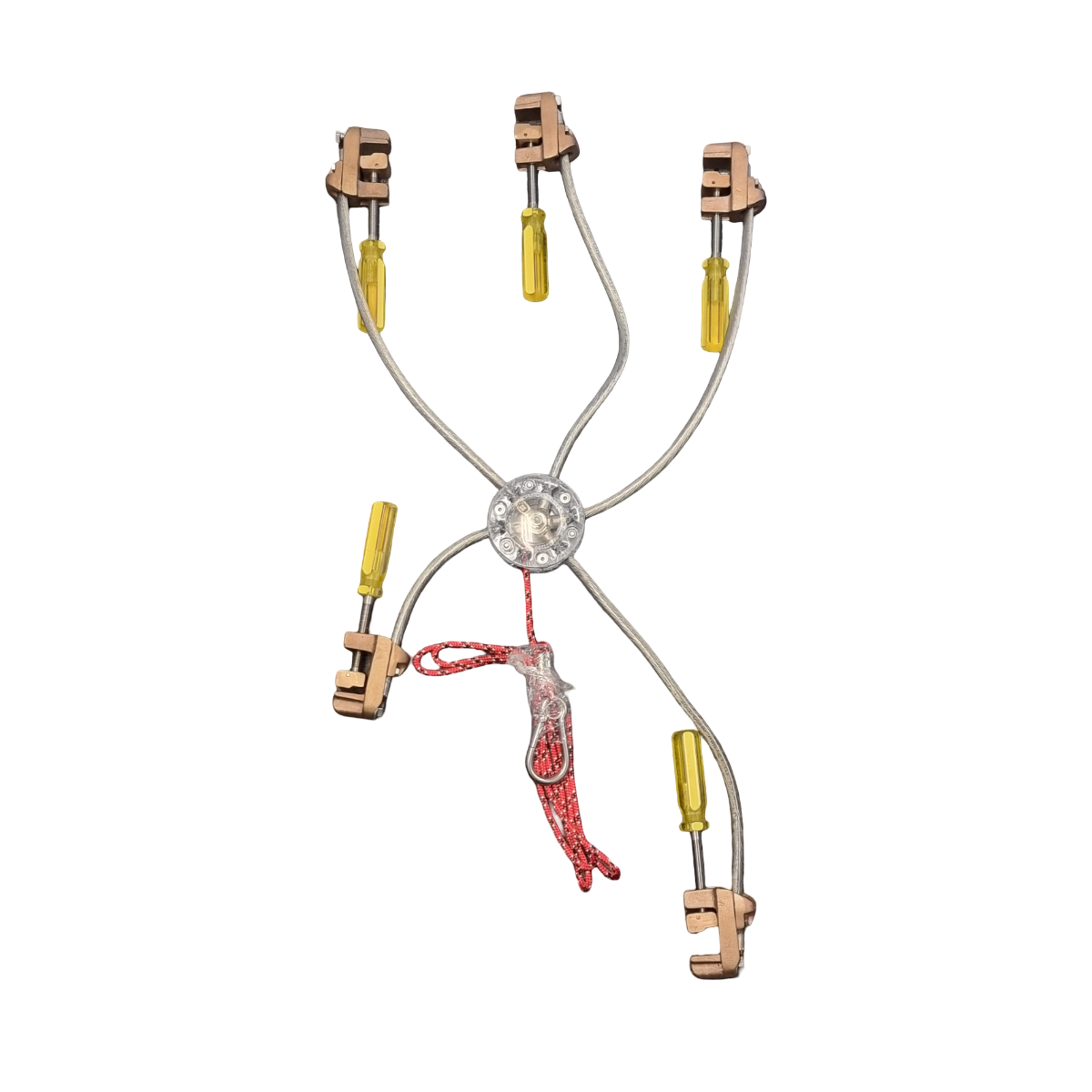

Our 3-Phase 1-Earth LVAny voltage exceeding 50 V a.c. or 120 V ripple free d.c. bu... More Portable EarthingElectrical earthing, also known as grounding, is a safety m... More Device Set typically consists of:
3 x Line ClampsLine Clamps are devices used to secure a cable to an overhea... More (Ground Clamp 27)
3 x Operating PoleOperating poles for portable earthing devices are insulated ... More Handles (1.2m max length)
1 x Neutral Clamp (Ground Clamp 27, Optional)
3 x Line Cables
1 x Junction BlockA junction block is a device used to connect two or more cab... More
1 x Earth Cable
1 x Ground Clamp
1 x Neutral Cable (Optional)
1 x Neutral Clamp (Optional)
1 x Caribiner Assembly (Optional)
1 x Earth Spike (Optional)
1 x Equipment Bag (Optional)
All sets can be customised to mix and match any components in catalogue
Drawing No 333113
Fixed Handle, Bayonet, T-Bar, Screwdriver
Fibreglass, PVC
32mm, 40mm
1.2, 1.8, 2, 3
Orange, Yellow
25mm2 CU, 35mm2 CU, 10 kA for 1s, 35mm2 CU, 11.5s for 0.5s, 50mm2 CU, 147mm2 AL
Yes, No
0.5, 1, 1.5, 2, 3, 5, 7, 10, 15, 20, 30, 40, 50, 100, 300, 500, 750, 1000
25/35mm 6-way, 50mm 5-way
25mm2 CU, 35mm2 CU 10.0 kA for 1s, 35mm2 CU, 11.5 kA for 1s, 50mm2 CU, 147mm2 AL
0.5, 1, 2, 3, 5, 7, 10, 15, 20, 30, 40, 50, 100, 300, 500, 750, 1000
760 mm, 900 mm
Green, Yellow, Blue, Red, Black
